Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

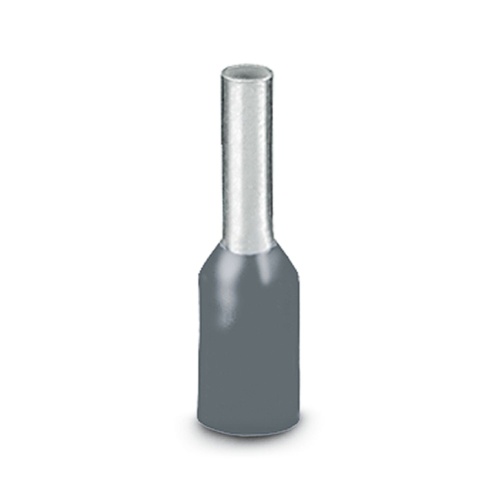

Phoenix Contact 3200069 Ferrule AI 2,5 - 8 GY
Normally In Stock
Code: 12002
Phoenix Contact AI 2, 5 - 8 GY, Gray Ferrule 14 guage AWG. 8mm pin length and 14mm overall length. (Sold in packs of 100)
Condition: New
Usually ships Same Day or Next Day$0.22
Sale Price
$0.18
MUST BUY IN PACKS OF 100
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

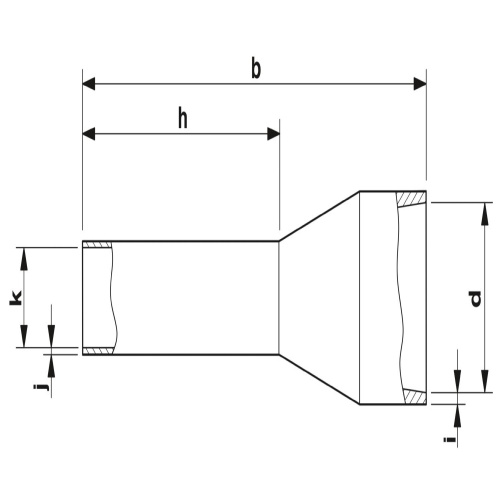

Phoenix Contact 3200069 Ferrule, Length contact range: 8 mm, sleeve length: 14 mm, color: gray
Specifications
Ferrule Type
Single Conductor Standard
Ferrule Color
Gray
Ferrule Pin Length
8 mm
Ferrule Overall Length
14 mm
Ferrule for Wire Gauge
14 Gauge
Manufacturer
Phoenix Contact
Component
Ferrule
Features
In terms of dimensions, these ferrules conform to DIN 46228-4: 1990-09
The color code of the plastic insulating collar is based on the French standard NF C 63-023: 1994-02
The metal sleeves are made from soft tin-plated electrolytic copper
