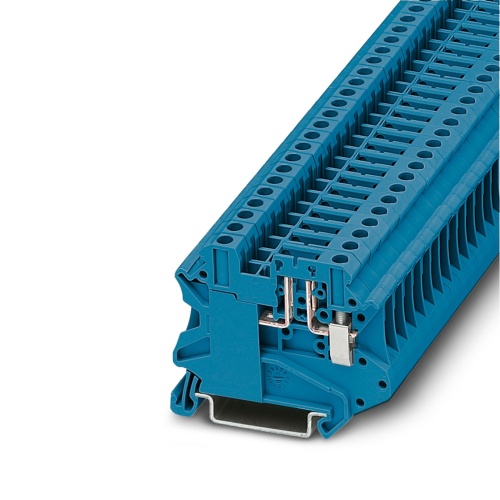

Phoenix Contact 3073283 Disconnect terminal block UT 4-TG BU
Normally In Stock
Code: 1199
UT 4-TG BU Phoenix Contact 3073283 Phoenix Contact UT 4-TG BU. Blue Removable Disconnect Fuse and Terminal Block Base 6.2mm Single through screw connection to use with Plug-ins sold seperately, up to 500V, 20A, 10-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$2.70
Sale Price
$2.25
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3073283 To determine the current and voltage of a terminal block, the type of plug used is essential as it sets both values, with the nominal voltage being 500V. The maximum continuous thermal current allowed is 20A, and connections can be made via screw connections using rated cross sections ranging from 0.14mm2 to 6mm2. Mounting options include NS 35/7.5 and NS 35/15, and the terminals are colored blue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking

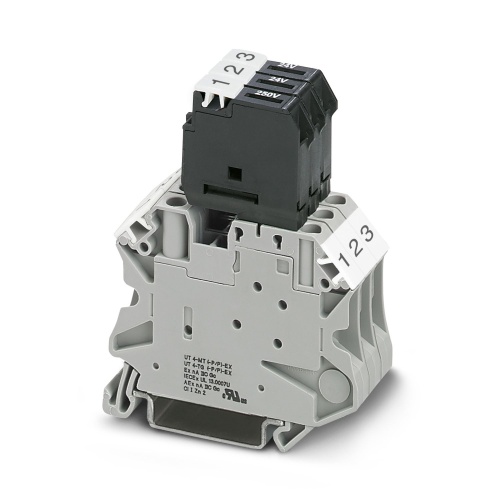

Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
