Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

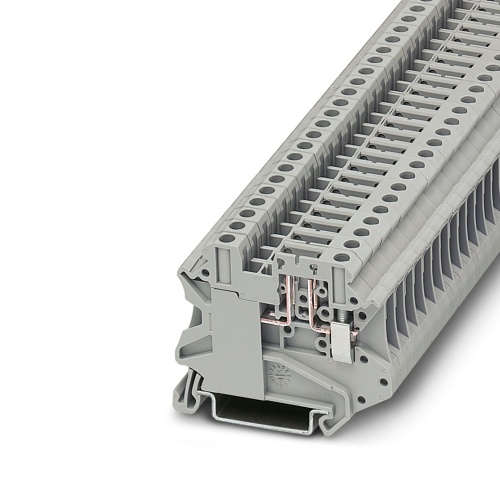

Phoenix Contact 3046142 Disconnect terminal block UT 4-TG
Normally In Stock
Code: 1198
UT 4-TG Phoenix Contact 3046142 Phoenix Contact UT 4-TG. Gray Removable Disconnect Fuse and Terminal Block Base 6.2mm Single through screw connection to use with Plug-ins sold seperately, up to 500V, 20A, 10-26AWG (Sold in packs of 50)
Condition: New
Usually ships within 7-14 days. Call for ship time.$2.72
Sale Price
$2.27
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046142 The terminal block has a specific set of characteristics that should be considered when making a connection, including voltage and current limits that vary depending on the plug used. The nominal voltage is 500V, while the continuous current capacity ranges from 20A for screw connections with a 4mm2 cross-section, to 6mm2 cross-sections. The mounting type is also specified as NS 35/7.5 or NS 35/15, and the color of the terminal block is gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Features
Tested for railway applications
Downloads
Phoenix 3046142 CAD data International.dxfPhoenix 3046142 CAD data International.pdfPhoenix 3046142 CAD data International.stpPhoenix 3046142 CAD Drawing.zipPhoenix 3046142 Manufacturers declaration English.pdfPhoenix 3046142 Manufacturers declaration International.pdfPhoenix 3046142 Safety note English.pdfPhoenix 3046142 Spec Sheet.pdfPhoenix 3046142 Tender Text English.zip
