Code: 11737

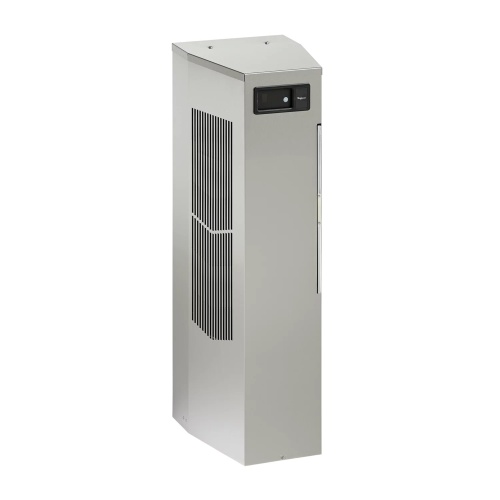

nVent Hoffman N360816G151 Spectracool AC 115V 8500 BTU Outdoor
nVent Hoffman N360816G151 Spectracool AC 115V 8500 BTU Outdoor
Condition: New
Usually ships Same Day or Next Day$11543.48
Sale Price
$9619.57
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman N360816G151 Spectracool AC 115V 8500 BTU Outdoor
Specifications
AC Width
12"
AC Mounting
Side Mount
AC Maximum Ambient Temp
131 F
AC Heat Package
No Heat Package
AC Voltage
115 VAC
AC Max BTU Rating
8500 BTU
AC Type
Air Conditioner (Compressor)
AC Environment
Outdoor-Indoor
AC Minimum Ambient Temp
-40 F
AC Composition
Stainless Steel
Component
Air Conditioner
Line
Spectracool
AC Depth
15"
AC Height
37"
AC NEMA Rating
NEMA Type 12
AC NEMA Rating
NEMA Type 3R
AC NEMA Rating
NEMA Type 4
AC Amperage
13.3 Amp
Manufacturer
Hoffman
Acs Watts
2489 Watts
Features
Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
Attractive industrial design with minimal use of visible fasteners
Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
Narrow design accommodates 12-inch deep cabinets
Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
Narrow design accommodates 12-inch (300-mm) deep cabinets
R407C, R513A or R134a refrigerants
Energy efficient rotary compressor on N36 and N43 models
Reliable mechanical thermostat on enclosure side of the unit, indoor air conditioner models include digital display on ambient side
Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
Models for 115, 230 and 400/460 3-phase VAC power input
Dust-resistant condenser coil allows the unit to be run filterless in most applications
Galvanized sheet-metal cover for rugged factory and outdoor environments
Downloads
Hoffman N360816G151 CAD Drawing.zipHoffman N360816G151 Declaration of Compliance.pdfHoffman N360816G151 EAC Certification.pdfHoffman N360816G151 EU Certification.pdfHoffman N360816G151 Instruction Manual.pdfHoffman N360816G151 N36 Instruction Manual.pdfHoffman N360816G151 Spec Sheet.pdfHoffman N360816G151 UL Certification.pdfHoffman N360816G151 User Manual.pdf
