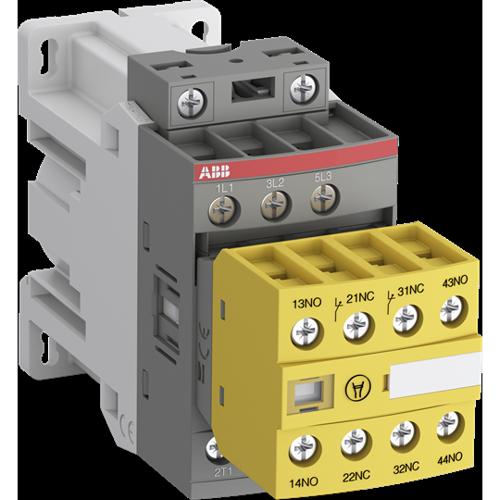

ABB AFS09Z-30-22-30 24 VDC Contactor
Normally In Stock
Code: 117116
ABB AFS09Z-30-22-30 24 VDC Contactor, Aux: 2 NC + 2 NO - Order Code: 1SBL136082R3022
Condition: New
Usually ships Same Day or Next Day$275.99
Sale Price
$229.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ABB AFS09Z-30-22-30 is a 3 pole - 690 V IEC or 600 V UL contactor with fixed 2 N.O + 2 N.C. front mounted auxiliary contact blocks with screw connections, controlling motors up to 4 kW / 400 V AC (AC-3) or 5 hp / 480 V UL and switching power circuits up to 25 A (AC-1) or 25 A UL general use. AFS contactors can be easily integrated in machine manufacturer’s systems complying with main standards EN ISO 13849 and EN 62061 - guaranteeing the safe use of your machinery and equipment. An easily identifiable yellow low energy auxiliary contact block ensures the status feedback circuits required in machine safety applications. Thanks to the AF technology, the contactor has a wide control voltage range (100 ... 250 V), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Specifications
Starter HP
5 HP @ 480 VAC 3 Phase
Starter HP
2 HP @ 208 VAC 3 Phase
Starter HP
2 HP @ 240 VAC 3 Phase
Starter Coil Voltage
24 VDC
Component
IEC Contactor
Starter Poles
Three Pole
Starter Frequency
50/60 Hz
Starter Amperage
25 Amp
Manufacturer
ABB
Starter Auxiliary Contacts
3 NO + 0 NC
Starter HP
1.5 HP @ 240 VAC 1 Phase
Starter HP
0.75 HP @ 120 VAC 1 Phase
Features
The AFS09Z-30-22-30 is a 3 pole - 690 V IEC or 600 V UL contactor with fixed 2 N.O + 2 N.C. front mounted auxiliary contact blocks with screw connections, controlling motors up to 4 kW / 400 V AC (AC-3) or 5 hp / 480 V UL and switching power circuits up to 25 A (AC-1) or 25 A UL general use
AFS c... Show more
