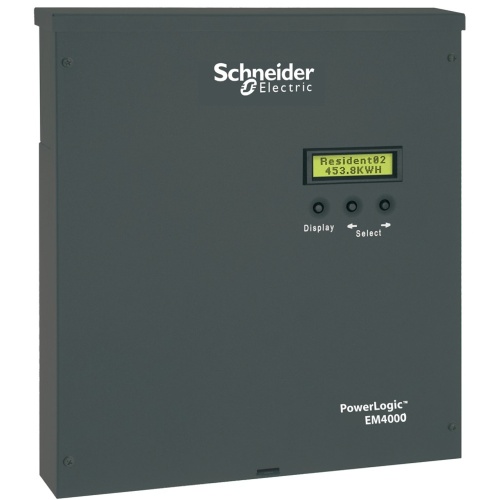

Schneider Electric METSEEM403316 EM4000 multi-circuit energy meter, 24 x 333 mV inputs, 277V control power 60 Hz
Normally In Stock
Code: 114648
Schneider METSEEM403316 120 V AC 60 Hz 24 solid core CT 0.333 V single pole, 12 solid core CT 0.333 V single phase, 8 solid core CT 0.333 V three phase, 24 split core CT 0.333 V single pole, 12 split core CT 0.333 V single phase, 8 split core CT 0.333 V three phase Multi-circuit
Condition: New
CALL FOR LEAD TIME$9164.40
Sale Price
$7637.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
EM4000 multi-circuit energy meter, 24 x 333 mV inputs, 277V control power 60 Hz
Specifications
Manufacturer
Schneider Electric
Monitoring Supply Voltage
120 VAC
Component
Multi-Circuit Energy Meter
Features
This multi-circuit power meter is part of the PowerLogic EM4000 Series
This compact multi-circuit energy meter enables reliable metering of building electrical loads with a low installation cost-per-point
It combine revenue-accurate electricity sub-metering with advanced communications technology
It is ideal for departmental metering applications and M&V within office, condominiums, malls and other multi-user environments
This version monitor up to 24 tenants with a single device, combined with 0.333 volt split or solid core current transducer
Designed for 277 (phase neutral) or 480 volts (phase phase) networks, working at 60 Hz
Measurement accuracy is plus or minus 0.5 %, compliant with ANSI C12.1 and C12.20 Class 0.5
IEC 62053-22 Class 0.5S
The printed board is installed in a Type 1 black enclosure, with an integrated backlit LCD display, 2 lines, on the door
Mechanical dimensions are 335 mm in width, 305 mm in height and 55 mm in depth
for 4 kg.
