Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 1146

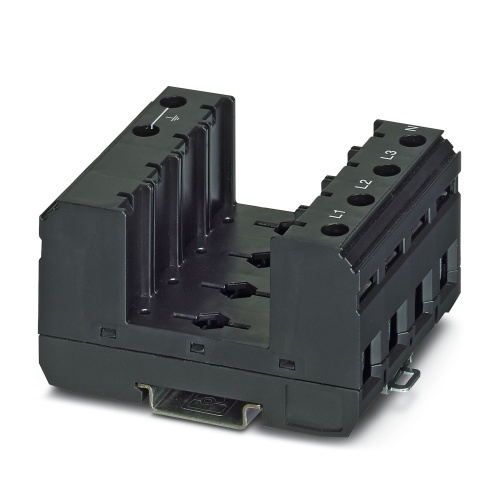

Phoenix Contact 2838885 Type 2 surge protection base element VAL-MS/3+1-BE
Normally In Stock
VAL-MS/3+1-BE Phoenix Contact VAL-MS/3+1-BE Base element for type 2 arresters of the VALVETRAB MS series of products. Version for 3-phase power supply with separate installation of N and PE conductors.
Condition: New
Usually ships within 7-14 days. Call for ship time.$161.47
Sale Price
$134.56
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2838885 The base element is used in type 2 arresters for the VALVETRAB MS product line, specifically designed for three-phase power supplies where the neutral (N) and earth (PE) conductors are installed separately.
Specifications
Surge Protector Mount
Din Rail Mount
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Component
Accessories
Connection Method
Screw Connection
Maximum Continous Voltage
45 Volt
Nominal Discharge Current
5 Ka
Sub Component
Base Element
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
Downloads
Phoenix 2838885 CAD data International.dxfPhoenix 2838885 CAD data International.pdfPhoenix 2838885 CAD data International.stpPhoenix 2838885 CAD Drawing.zipPhoenix 2838885 Flyer English.pdfPhoenix 2838885 Manufacturers declaration English.pdfPhoenix 2838885 Manufacturers declaration International.pdfPhoenix 2838885 Package Slip International.pdfPhoenix 2838885 Software International.zipPhoenix 2838885 Spec Sheet.pdfPhoenix 2838885 Surge Protection English.pdfPhoenix 2838885 Tender Text English.zipPhoenix 2838885 User Manual.pdfPhoenix 2838885 Various International.pdf
