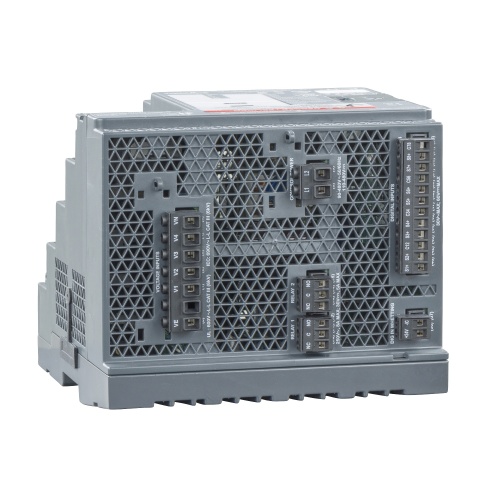

Schneider Electric METSEION92030 PowerLogic™ ION9000 meter, DIN mount, no display, HW kit
Normally In Stock
Code: 114566
Schneider METSEION92030 Without display 8 digital 30 V AC/60 V DC Energy and power quality meter ION92030 50 Hz, 60 Hz 4 digital, 2 form C relay 2 RS485 removable screw terminal block 1024 samples/cycle EN 50160 compliance checking, IEEE 519 harmonic limit, IEC 61000-4-30 class A
Condition: New
CALL FOR LEAD TIME$26161.58
Sale Price
$21801.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
PowerLogic™ ION9000 meter, DIN mount, no display, HW kit
Specifications
Monitoring Switching Output
4 Digital
Monitoring Switching Output
2 Form C Relay
Manufacturer
Schneider Electric
Monitoring Connection Method
2 RS485
Component
Energy And Power Quality Meter
Features
The PowerLogic ION9000 is your 24/7 power quality expert, providing information, not just data
A comprehensive, industry-leading Power Quality Instrument (PQI-A) certified to IEC 62586-1/-2 ensures reliable, precision performance that is perfect for both supply and demand side applications
Third-party lab verified accuracy to Class 0.1S (ANSI C12.20, IEC 62053-22)
Highly customizable and modular, ION technology programmability and field installable option modules can satisfy any solution, protecting your investment now and into the future
Providing power quality analysis according to both EN 50160 and IEEE 519, and patented Disturbance Direction Detection, you become a PQ expert and will be able to respond rapidly to system events
Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol, ability to enable/disable communication ports, and 50 user configurable accounts
With 2 GB of memory to support 50 data logs, 50+ user-definable alarms, disturbance and transient waveforms
1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use
The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function
8 digital inputs, 4 digital outputs and 2 relay outputs, plus the ability to add up to 4 option modules
Option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs
Ability to capture power quality events as short as 20 µs and record both waveforms and 1/2-cycle RMS concurrently on any event
Voltage inputs of 100 to 690 V between phases
Current inputs of 1 A, 5 A
current class 2, 10, 20 A
Frequency of 20-450 Hz
Wide control power range of 90 to 480 VAC or 110 to 480 VDC
DIN rail mounting or panel mounting (with back to back adapter) transducer, plus 2 display options, further enhance the flexibility and adaptability of the ION9000.
