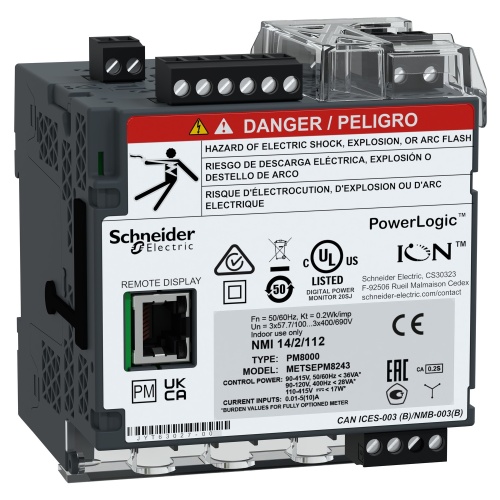

Schneider Electric METSEPM8243 PowerLogic PM8000 - PM8243 DIN rail mount meter - intermediate metering
Normally In Stock
Code: 114477
Schneider METSEPM8243 Without display Clip-on 3 digital 30 V AC, 3 digital 60 V DC Power meter Voltage, Current, Frequency, Power, Energy consumption, Harmonic distortion PM8243 50 Hz, 60 Hz 1 pulse Ethernet, Screw terminal block RS485 PowerLogic PM8000 256 samples/cycle EN 50160
Condition: New
CALL FOR LEAD TIME$9813.40
Sale Price
$8177.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
PowerLogic PM8000 - PM8243 DIN rail mount meter - intermediate metering
Specifications
Monitoring Switching Output
1 Pulse
Manufacturer
Schneider Electric
Monitoring Type
Voltage
Monitoring Type
Current
Monitoring Type
Frequency
Monitoring Type
Power
Monitoring Type
Energy Consumption
Monitoring Type
Harmonic Distortion
Monitoring Connection Method
Ethernet
Monitoring Connection Method
RS485
Component
Power Meter
Features
The PowerLogic PM8000 series meters are compact, cost-effective multifunction power meters that will help you ensure reliability and efficiency of your power-critical facility
They reveal and provide understanding of complex power quality conditions enabling action to be taken to mitigate any issue
The PowerLogic PM8000 series meters have the versatility to perform nearly any job you need a meter to do, wherever you need it!,The modular, flexible ION technology architecture enables a simple, building block approach for customizing each meter to any application
With patented Disturbance Direction Detection, revenue grade accuracy, multiple communication ports, onboard power quality analysis, web interface and a color graphical display
Certified by third party labs for energy accuracy (IEC 62052-11, IEC 62052-22, IEC 62052-24) and power quality (IEC 62586-2, IEC 61000-4-30 Class S)
The PowerLogic PM8000 series provides data quality confidence you can count on
Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol
Ability to enable/disable communication ports, and 50 user configurable accounts
With 512 MB of memory to support 50 data logs, 50+ user-definable alarms, waveform captures, 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use
The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function

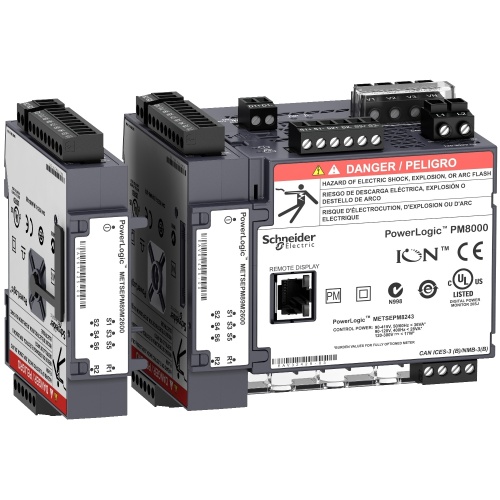

3 digital inputs and one digital output, plus the ability to add up to 4 option modules
I/O option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs
Wide control power range of 90-415 VAC / 110-415 VDC
Operating environment of -25 to +70C
Humidity rating of 5% to 95%
Altitude up to 3000 m

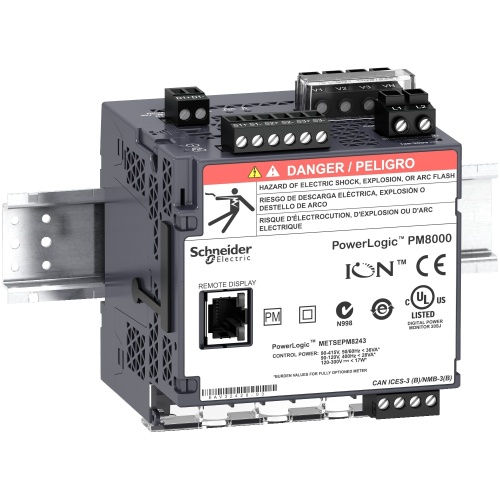

DIN rail mounting transducer (no display).
