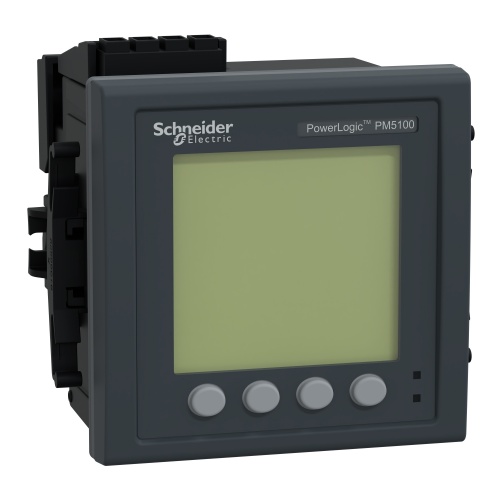

Schneider Electric METSEPM5110 PM5110 Meter, modbus, up to 15th H, 1DO 33 alarms
Normally In Stock
Code: 114429
Schneider METSEPM5110 Power meter up to the 15th harmonic Backlit LCD 64 samples/cycle Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V, JBUS CE IEC 61010-1, CULus UL 61010-1 Class 0.5S active energy IEC 62053-22 1 A, 5 A 100-415 V AC 45-65 Hz, 125
Condition: New
Normally Stocked$1464.89
Sale Price
$1220.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
PM5110 Meter, modbus, up to 15th H, 1DO 33 alarms
Specifications
Monitoring Approval
CE IEC 61010-1
Monitoring Approval
Culus UL 61010-1
Monitoring Approval
EN 50470-3
Monitoring Approval
EN 50470-1
Monitoring Approval
IEC 62053-22
Monitoring Approval
IEC 60529
Monitoring Approval
UL 61010-1
Monitoring Approval
IEC 62053-24
Monitoring Approval
IEC 61557-12
Monitoring Interface
JBUS
Monitoring Interface
128 X 128 Pixels
Monitoring Interface
Backlit LCD
Monitoring Primary Rated Current
1 Amp
Monitoring Primary Rated Current
5 Amp
Monitoring Interface
Modbus RTU And ASCII
Monitoring Accuracy Class
Class 0.5S
Manufacturer
Schneider Electric
Monitoring Supply Voltage
125-250 VDC
Monitoring Input Current Range
10-9000 Mamp
Monitoring Measuring Range
64 Samples/Cycle
Monitoring Supply Voltage
100-415 VAC
Component
Power Meter
Features
Feature-rich power and energy meters
Energy pulse output for remote monitoring
Modbus 485 communication port for remote monitoring
