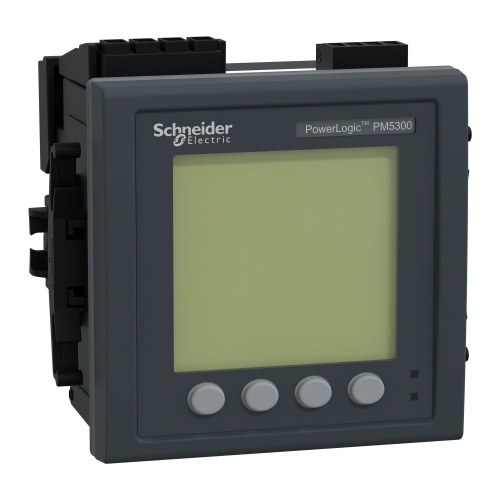

Schneider Electric METSEPM5340 PM5340 Meter, ethernet, up to 31st H, 256K 2DI/2DO 35 alarms
Normally In Stock
Code: 114427
Schneider METSEPM5340 Power meter up to the 31st harmonic Backlit LCD 64 samples/cycle Modbus TCP/IP 10/100 Mbit/s 2500 V CE IEC 61010-1, CULus UL 61010-1 Class 0.5S active energy IEC 62053-22 5 A, 1 A 100-415 V AC 45-65 Hz, 125-250 V DC 3P, 1P + N, 3P + N 10 VA 415 V 80 ms 120 V
Condition: New
Normally Stocked$2701.98
Sale Price
$2251.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
PM5340 Meter, ethernet, up to 31st H, 256K 2DI/2DO 35 alarms
Specifications
Monitoring Approval
CE IEC 61010-1
Monitoring Approval
Culus UL 61010-1
Monitoring Approval
EN 50470-3
Monitoring Approval
EN 50470-1
Monitoring Approval
IEC 62053-22
Monitoring Approval
IEC 60529
Monitoring Approval
UL 61010-1
Monitoring Approval
IEC 62053-24
Monitoring Approval
IEC 61557-12
Monitoring Interface
Modbus TCP/IP 10/100 Mbit/S 2500 V
Monitoring Interface
1P + N
Monitoring Interface
3P
Monitoring Interface
3P + N
Monitoring Interface
128 X 128 Pixels
Monitoring Interface
Backlit LCD
Monitoring Primary Rated Current
1 Amp
Monitoring Primary Rated Current
5 Amp
Monitoring Accuracy Class
Class 0.5S
Manufacturer
Schneider Electric
Monitoring Supply Voltage
125-250 VDC
Monitoring Input Current Range
10-9000 Mamp
Monitoring Measuring Range
64 Samples/Cycle
Monitoring Supply Voltage
100-415 VAC
Component
Power Meter
Features
Feature-rich power and energy meters
Digital input and output for WAGES monitoring and control relays
Modbus TCP/ IP Ethernet communication port for remote monitoring
