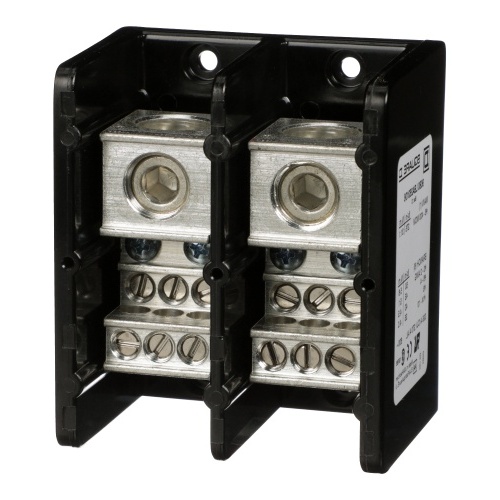

Schneider Electric 9080LBA263106 Power distribution block, Linergy, 2 pole, 1 line, 6 load, 335A CU, 270A AL, 600 V
Normally In Stock
Code: 113825
Schneider 9080LBA263106 4.75 in (120.65 mm Power Distribution Block 2 335 A copper, 270 A aluminium 1 line, 6 load 600 V AC/DC Circuit Protectors/Fuseholders/Terminal Blocks Square D 9080 Power Distribution Blocks 9080LB Power Distribution Blocks
Condition: New
Normally Stocked$150.60
Sale Price
$125.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Power distribution block, Linergy, 2 pole, 1 line, 6 load, 335A CU, 270A AL, 600 V
Specifications
Terminal Block Voltage Rating
600 Volt
Terminal Block Amperage
270 Amp
Terminal Block Amperage
335 Amp
Manufacturer
Schneider Electric
Component
Terminal Block
Sub Component
Power Distribution Block
Features
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards
This two pole block has one lug opening on the line (main) side and six lug openings on the load (branch) side
The line side lug is rated to accept one #6 to 400 kcmil copper or aluminum wire
Each load side lug is rated to accept one #14 to #2 copper or aluminum wire
The lugs are made of aluminum
The lugs are rated for 335 amperes with copper wire and 270 amperes with aluminum wire
The lugs are rated to 600 volts
The housing is made of general purpose phenolic
These Linergy power distribution blocks are UL component recognized and CSA certified.
