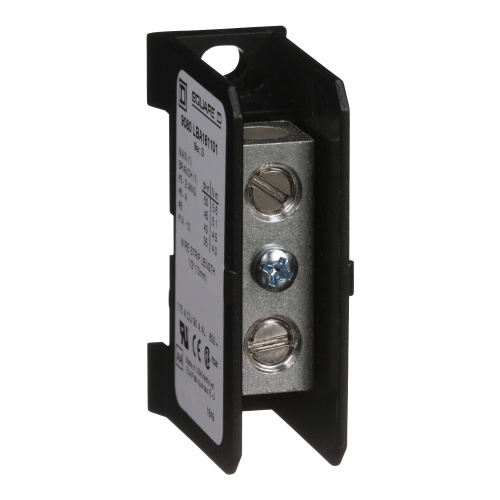

Schneider Electric 9080LBA161101 Power distribution block, Linergy, 1 pole, 1 line, 1 load, 115A CU, 90A AL, 600 V
Normally In Stock
Code: 113804
Schneider 9080LBA161101 2.29 in (58.17 mm Miniature Power Distribution Block 1 115 A copper, 90 A aluminium 1 line, 1 load 600 V AC/DC Circuit Protectors/Fuseholders/Terminal Blocks Square D 9080 Power Distribution Blocks 9080LB Power Distribution Blocks
Condition: New
Normally Stocked$28.19
Sale Price
$23.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Power distribution block, Linergy, 1 pole, 1 line, 1 load, 115A CU, 90A AL, 600 V
Specifications
Terminal Block Voltage Rating
600 Volt
Terminal Block Amperage
115 Amp
Terminal Block Amperage
90 Amp
Manufacturer
Schneider Electric
Component
Terminal Block
Sub Component
Miniature Power Distribution Block
Features
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards
This one pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side
The line side lug is rated to accept one #14 to #2 copper or aluminum wire
The load side lug is rated to accept one #14 to #2 copper or aluminum wire
The lugs are made of aluminum
The lugs are rated for 115 amperes with copper wire and 90 amperes with aluminum wire
The lugs are rated to 600 volts
The housing is made of high impact thermoplastic
These Linergy power distribution blocks are UL component recognized and CSA certified.
