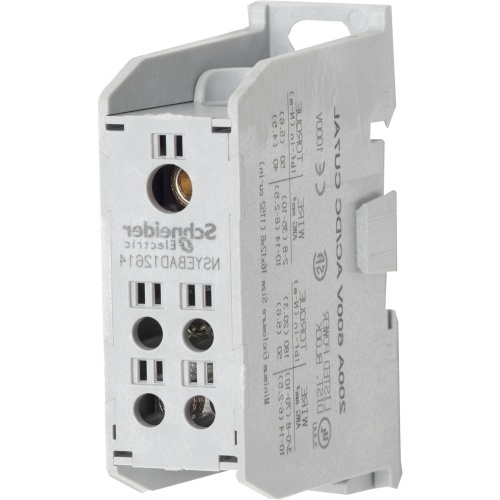

Schneider Electric NSYEBCD12614 Power distribution block, Linergy, enclosed, 200A CU, 600 V, 1 line side lug, 4 load side lug, CU lug, rail mount
Normally In Stock
Code: 113791
Schneider NSYEBCD12614 NSYEB Power Distribution Block 3.61 in (91.69 mm 200 A copper 35 mm DIN rail 1 line, 4 load 600 V AC/DC Circuit Protectors/Fuseholders/Terminal Blocks IEC Enclosed Power Distribution Blocks Enclosed Power Distribution Blocks
Condition: New
Normally Stocked$199.39
Sale Price
$166.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Power distribution block, Linergy, enclosed, 200A CU, 600 V, 1 line side lug, 4 load side lug, CU lug, rail mount
Specifications
Terminal Block Voltage Rating
600 Volt
Terminal Block Number of Connections
4
Terminal Block Number of Connections
1
Terminal Block Connection Method
DIN Rail
Terminal Block Amperage
200 Amp
Manufacturer
Schneider Electric
Component
Terminal Block
Sub Component
Power Distribution Block
Features
NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe
The terminals of these power terminal blocks are finger safe from the front according to IP20
They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements
This block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with fuses and circuit breakers
Refer to the catalog for details on this
The lugs in these blocks are available with either copper or aluminum
This block has a tin plated copper lug
The line side lug of this block is rated to 200A at 600 V when copper wire is used
The line side terminal will accept 14 AWG to 3/0 AWG copper wires
The four load side terminals will accept 14 AWG to 2 AWG copper wires
This block can be mounted on 35 mm DIN rail
This block is 3.61 inches tall, 1.21 inches wide and 2.71 inches deep
This block is UL Listed, CSA cerified and RoHS compliant.
