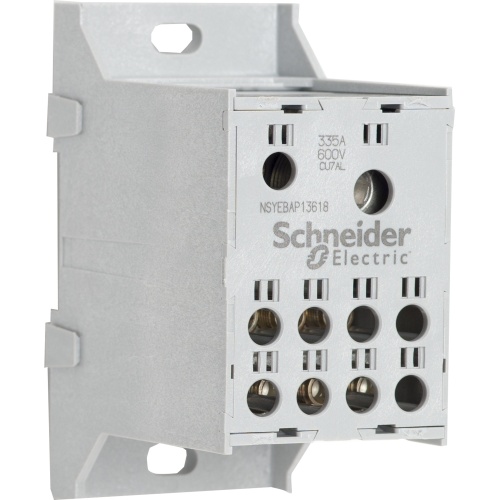

Schneider Electric NSYEBAD13618 Power distribution block, Linergy, enclosed, 335A CU, 270A AL, 600 V, 2 line side lug, 8 load side lug, AL lug, rail
Normally In Stock
Code: 113782
Schneider NSYEBAD13618 NSYEB Power Distribution Block 4.39 in (111.51 mm 335 A copper, 270 A aluminium 35 mm DIN rail 1 line, 8 load 600 V AC/DC Circuit Protectors/Fuseholders/Terminal Blocks IEC Enclosed Power Distribution Blocks Enclosed Power Distribution Blocks (MUST BUY IN PACKS OF 24)
Condition: New
CALL FOR LEAD TIME$173.39
Sale Price
$144.49
MUST BUY IN PACKS OF 24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Power distribution block, Linergy, enclosed, 335A CU, 270A AL, 600 V, 2 line side lug, 8 load side lug, AL lug, rail
Specifications
Terminal Block Voltage Rating
600 Volt
Terminal Block Number of Connections
8
Terminal Block Number of Connections
1
Terminal Block Connection Method
DIN Rail
Terminal Block Amperage
270 Amp
Terminal Block Amperage
335 Amp
Manufacturer
Schneider Electric
Component
Terminal Block
Sub Component
Power Distribution Block
Features
NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe
The terminals of these power terminal blocks are finger safe from the front according to IP20
They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements
This block has a Short-Circuit Current Ratings (SCCR) of up to 10 kA with fuses and circuit breakers
Refer to the catalog for details on this
The lugs in these blocks are available with either copper or aluminum
This block has a tin plated aluminum lug
The line side lug of this block is rated to 335A at 600 V when copper wire is used and 270A at 600 V when aluminum wire is used
One of the line side terminals will accept 14 AWG to 3/0 AWG copper wires or 6 AWG to 3/0 AWG aluminium wires
The other line side terminal will accept 6 AWG to 400 kcmil copper wires or 6 AWG to 400 kcmil aluminium wires
The eight load side terminals will accept 14 AWG to 2 AWG copper wires or 6 AWG to 2 AWG aluminium wires
This block can be mounted on 35 mm DIN rail
This block is 4.39 inches tall, 2.26 inches wide and 3.14 inches deep
This block is UL Listed, CSA cerified and RoHS compliant.
