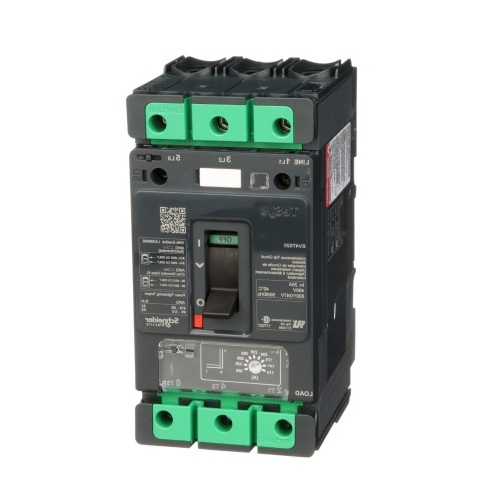

Schneider Electric BV4T025D Motor Circuit Protector BV4 Description
Normally In Stock
Code: 113745
Buy Schneider BV4T025D Standard Motor Circuit Protector TeSys BV4 Motor Circuit Protectors TeSys BV4 BV4T Motor Circuit Protectors
Condition: New
Normally Stocked$522.10
Sale Price
$435.08
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
The TeSys BV4 motor circuit protector provides compact protection for motors in conjunction with the TeSys and Square D NEMA product families, meeting NEC installation requirements through its UL508 type D combination ratings, and features a magnetic-only design with adjustable instantaneous trip rating and patented EverLink wiring terminals that reduce the risk of loose cables and improve vibration withstand.
Specifications
Sub Component
Motor Circuit Protector
Manufacturer
Schneider Electric
Features
The TeSys BV4 motor circuit protector allows for compact motor protection in conjunction with both the TeSys and Square D NEMA product families for motor control
These protectors have UL508 type D combination ratings in accordance to current NEC installation requirements,The BV4 is a magnetic only protector
It is a UL489 Listed circuit protector rated up to 100kA short circuit protection rating per a listed combination motor controller rating
This 3 pole motor circuit protector with standard fault has a 25A rating
It also has an adjustable instantaneous trip rating of 110 to 360 amperes
BV4 protectors have wiring terminals with the EverLink patented technology
These terminals reduce the risk of loose bare cables due to copper creeping
Vibration withstand is improved and periodic retightening is no longer needed
BV4 motor circuit protectors can be installed directly to a panel or on standard DIN rail
This circuit protector is 6.38 inches tall, 3.19 inches wide and 4.57 inches deep
This motor circuit protector is UL Listed and CSA certified.
