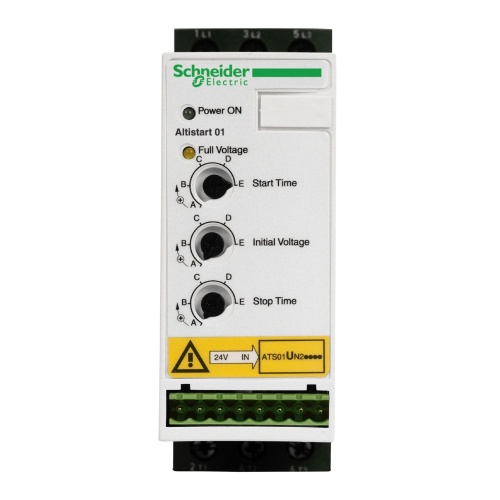

Schneider Electric ATSU01N212LT soft starter for asynchronous motor - ATSU01 - 12 A - 200..480V - 2.2..5.5 KW
Normally In Stock
Code: 113651
Schneider ATSU01N212LT 2.2 kW, 3 phase 230 V, 5.5 kW, 3 phase 400 V, 3 kW, 3 phase 230 V 3 hp, 3 phase 230 V, 7.5 hp, 3 phase 460 V Soft starter 12 A Soft Start - Altistart 01 Soft start/stop units 3-phase supply voltage 200...480 V (For TeSys U)
Condition: New
CALL FOR LEAD TIME$244.73
Sale Price
$203.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
soft starter for asynchronous motor - ATSU01 - 12 A - 200..480V - 2.2..5.5 KW
Specifications
Manufacturer
Schneider Electric
Starter Horsepower
3 HP @ 230 V
Starter Horsepower
7.5 HP @ 460 V
Component
Soft Starter
Starter Current Rating
12 Amp
Features
The Altistart U01 is a soft start/soft stop unit for 3-phase asynchronous motors
It is designed primarily for combinations with TeSys U starter-controllers
It can be used for a motor rated power up to 3kW or 7.5hp for 3-phase (200V to 480V AC) and up to 12A rating
It is 45mm wide, this makes it one of the smallest soft starters on the market
It can be installed nearly everywhere
It features an Integrated bypass, this reduces noise and decreases heat dissipation
Its protection index is IP20
It weighs 0.34kg and its dimensions are, 45mm wide, 234mm high, 150mm deep
The Altistart U01 is designed for the following simple applications like conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery
It complies with standards IEC/EN 60947-4-2, and carries UL, CSA, C-Tick, and CCC certifications, and CE marking
It can be easily combined with a TeSys U controller by means of the power connector VW3G4104
It is easy to install on a DIN rail
Altistart 01 combines simplicity with easy cabling, fast configuration and efficiency
Reduced machine wear and minimized maintenance time will optimize operations
Together with TeSys Model U, it provides a unique motor starter solution.
