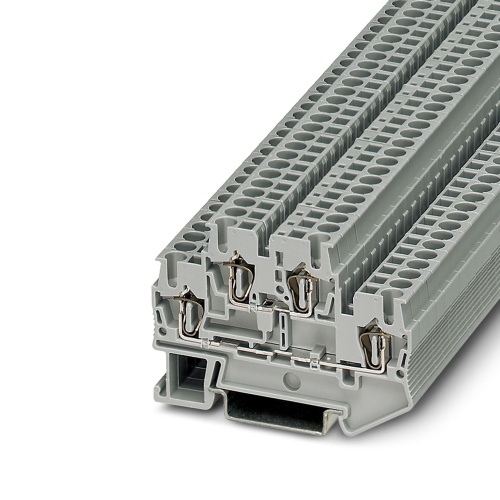

Phoenix Contact 3031270 Double-level spring-cage terminal block STTB 2,5
Normally In Stock
Code: 11351
STTB 2,5 Phoenix Contact 3031270 Phoenix Contact STTB 2.5. Terminal Block 5.2mm Double Level Gray Single through spring cage connection up to 500V, 22A, 12-28AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$4.46
Sale Price
$3.72
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3031270 A double-level spring-cage terminal block with a nominal voltage of 500 V and a maximum current capacity of 22 A features a spring-cage connection method. The rated cross-sectional area of the conductor is 2.5 mm², but can range from 0.08 mm² to 4 mm². The terminal block is designed for mounting types NS 35/7,5 and NS 35/15, and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
22 Amp
Sub Component
Multi-Level Terminal Block
Sub Component
Double-Level Spring-Cage Terminal Block
Features
Tested for railway applications
Compact design for maximum space savings
Downloads
Phoenix 3031270 CAD data International.dxfPhoenix 3031270 CAD data International.pdfPhoenix 3031270 CAD data International.stpPhoenix 3031270 CAD Drawing.zipPhoenix 3031270 Certification English-2.pdfPhoenix 3031270 Certification English.pdfPhoenix 3031270 Data Sheet English.pdfPhoenix 3031270 Manufacturers declaration International-2.pdfPhoenix 3031270 Manufacturers declaration International-3.pdfPhoenix 3031270 Manufacturers declaration International.pdfPhoenix 3031270 Safety note English.pdfPhoenix 3031270 Spec Sheet.pdfPhoenix 3031270 Tender Text English.zipPhoenix 3031270 User instructions for the Ex Area International.pdfPhoenix 3031270 User Manual.pdf
