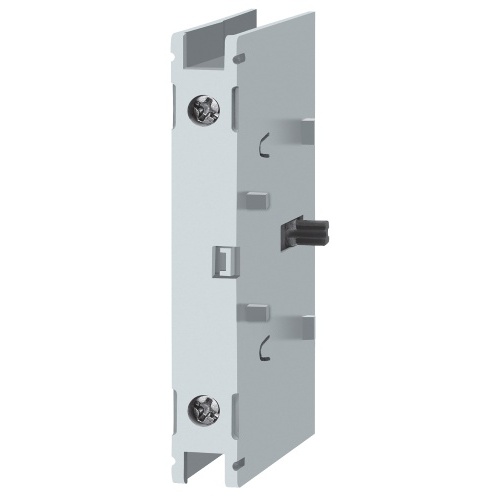

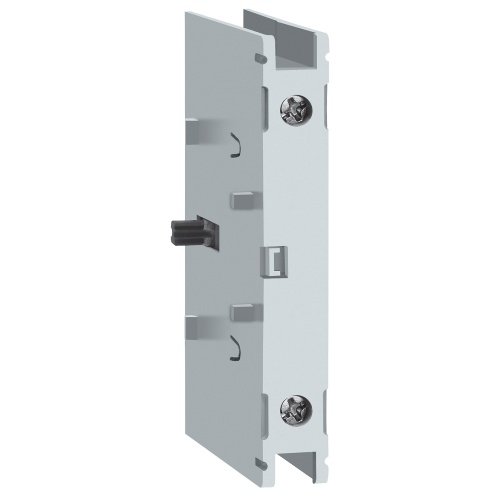

Schneider Electric VLSA10R2E TeSys VLS - auxiliary contact block - 1 NC early-break - DIN rail - size 2
Normally In Stock
Code: 113415
Schneider VLSA10R2E 6 A AC-1524 V AC, 6 A AC-1548 V AC, 6 A AC-15127 V AC, 3 A AC-15240 V AC, 3 A DC-1324 V DC, 1.5 A DC-1348 V DC, 0.55 A DC-13127 V DC, 0.27 A DC-13240 V DC 1 NC GL Auxiliary contact block 690 V AC 50/60 Hz High performance 10 A 131 °F (55 °C 10 A IP20 IEC 60529
Condition: New
Normally Stocked$65.94
Sale Price
$54.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TeSys VLS - auxiliary contact block - 1 NC early-break - DIN rail - size 2
Specifications
Component
Auxiliary Contact Block
Manufacturer
Schneider Electric
Features
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more
This family of disconnect switches has switches ranging from 16A to 125A
The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated
The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated
This auxiliary contact can be added to a VLS3P030R2, VLS3P063R2, VLS3P080R2, VLS3P100R2 or VLS3P125R2 DIN rail mount switch
This auxiliary contact can be mounted on the right or left hand side
This auxiliary contact has one normally open early break contact
The operational voltage of this auxiliary contact is 600 V
This auxiliary contact block has A600 and Q600 current ratings
The screw clamp terminals will accept 18 AWG to 6 AWG wire
Auxiliary contact module is 3.07 inches tall, 0.47 inches wide and 1.93 inches deep
It weighs 0.08 lbs
This auxiliary contact module is cULus Listed and meets IEC 60947-3 requirements.
