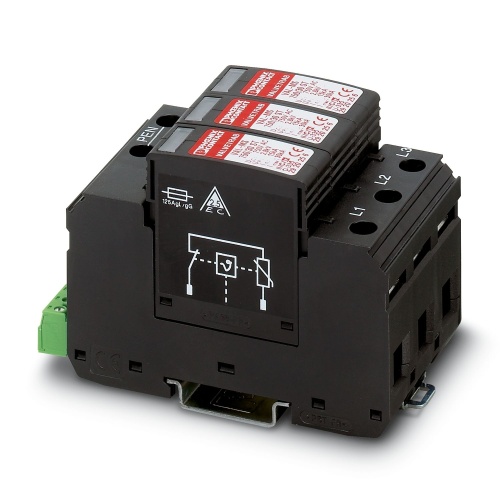

Phoenix Contact 2920269 Type 2 surge arrester VAL-MS 750/30/3+0
Normally In Stock
Code: 1132

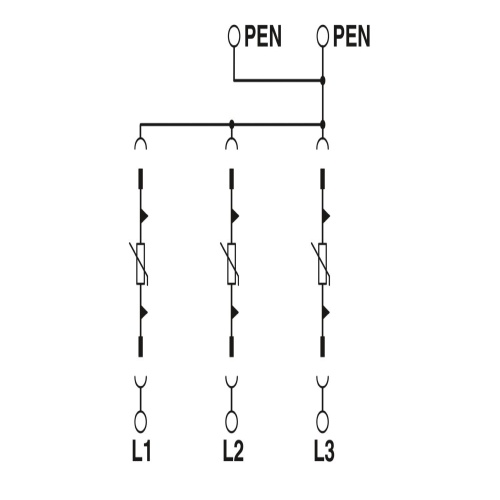

VAL-MS 750/30/3+0 Phoenix Contact VAL-MS 750/30/3+0 Surge arrester for 4-conductor power supply systems (L1, L2, L3, PEN), consisting of a base element and protective connectors, for mounting on DIN rail.
Condition: New
Usually ships within 7-14 days. Call for ship time.$473.64
Sale Price
$394.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2920269 A surge arrester designed specifically for use with 4-conductor power supply systems in industrial settings is available, featuring a base component that can be paired with protective connectors to provide safe and reliable protection against electrical surges. This particular surge arrester is intended for mounting on the NS 35 standard.
Specifications
Surge Protector Mount
Din Rail Mount
Fault Warning
None
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
554-960 Volt
Component
Surge Arrester
Features
Can be used in high-performance industrial networks and wind turbine generators (stator) due to the high nominal voltage
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
Downloads
Phoenix 2920269 CAD data International.dxfPhoenix 2920269 CAD data International.pdfPhoenix 2920269 CAD data International.stpPhoenix 2920269 CAD Drawing.zipPhoenix 2920269 Flyer English.pdfPhoenix 2920269 Manufacturers declaration International.pdfPhoenix 2920269 Package Slip International.pdfPhoenix 2920269 Package Slip.pdfPhoenix 2920269 Software International.zipPhoenix 2920269 Spec Sheet.pdfPhoenix 2920269 Surge Protection English.pdfPhoenix 2920269 Tender Text English.zipPhoenix 2920269 TRABTECH teachware TTT_1_4_2.zipPhoenix 2920269 User Manual.pdf
