Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

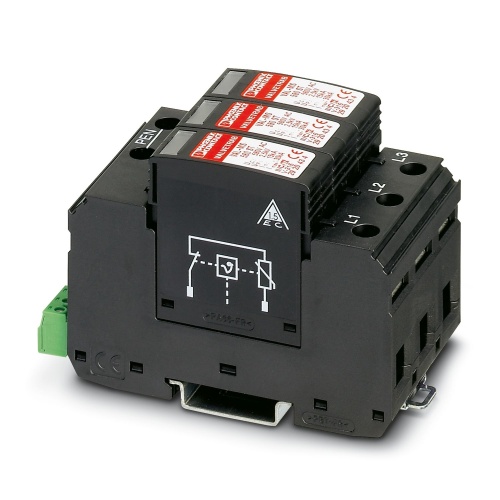

Phoenix Contact 2920447 Type 2 surge arrester VAL-MS 580/3+0-FM
Normally In Stock
Code: 1131
VAL-MS 580/3+0-FM Phoenix Contact VAL-MS 580/3+0-FM Surge arrester for 4-conductor power supply systems (L1, L2, PEN), consisting of a base element with remote indication contact
Condition: New
Usually ships Same Day or Next Day$526.13
Sale Price
$438.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2920447 A surge arrester designed for use in 4-conductor power supply systems, including lines L1, L2, L3, and the neutral earth line (PEN), is available with a base unit that features a remote indication contact and protective connectors, suitable for mounting on standard NS 35 systems.
Specifications
Surge Protector Mount
Din Rail Mount
Fault Warning
None
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
400-690 Volt
Component
Surge Arrester
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
Downloads
Phoenix 2920447 CAD data International.dxfPhoenix 2920447 CAD data International.pdfPhoenix 2920447 CAD data International.stpPhoenix 2920447 CAD Drawing .zipPhoenix 2920447 Flyer English.pdfPhoenix 2920447 Manufacturers declaration English.pdfPhoenix 2920447 Manufacturers declaration International.pdfPhoenix 2920447 Package Slip International.pdfPhoenix 2920447 Package Slip.pdfPhoenix 2920447 Product Information English.pdfPhoenix 2920447 Software International.zipPhoenix 2920447 Spec Sheet.pdfPhoenix 2920447 Surge Protection English.pdfPhoenix 2920447 Tender Text English.zipPhoenix 2920447 TRABTECH teachware TTT_1_4_2.zipPhoenix 2920447 User Manual.pdf
