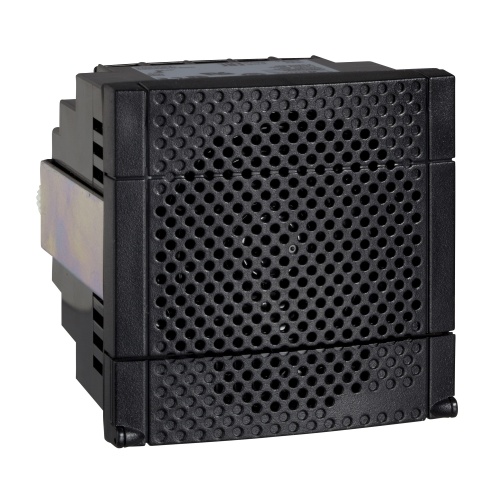

Schneider Electric XVS72BMBN Electronic alarm, black, NPN, mounting support DIN 72, 0…90 dB, 16 tones, 4 channels, 12…24 V AC DC
Normally In Stock
Code: 112778
Schneider XVS72BMBN 12-24 V DC Black NPN 72 mm DIN rail 16 tones alarm 0-90 dB continuous or intermittent tone1 m Electronic alarm Panel mounted IP54 EN/IEC 60529 Harmony XVS Sirens and Electronic Alarms Sound solution Electronic alarm
Condition: New
Normally Stocked$231.94
Sale Price
$193.28
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Electronic alarm, black, NPN, mounting support DIN 72, 0…90 dB, 16 tones, 4 channels, 12…24 V AC DC
Specifications
(Switching-Indication) Color
Black
(Switching-Indication) IP Rating
Panel Mounted IP54 EN/IEC 60529
Manufacturer
Schneider Electric
Component
Accessories
Sub Component
Electronic Alarm
(Switching-Indication) DC Voltage
12-24 Volt
(Switching-Indication) AC Voltage
12-24 Volt
Features
This black electronic alarm is part of the range of multi sound sirens and alarms Harmony XVS
This multisound alarm provides 16 tones and is supplied pre-cabled
It can be supplied with 12V to 24V AC/DC and features NPN output type
It allows imple integration with your applications featuring a compact body that’s 20% thinner than the competition
Its protection index is IP54
It weighs 180g
It provides PC (polycarbonate) terminal cover and ABS (acrylonitrile butadiene-styrene) body part
It is designed for long distance signaling applications, used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels
It is CE, UL and CSA certified
It can be mounted on 72mm DIN rail.
