Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Schneider Electric XVC6B15SK Monolithic tower light, red, 60mm, base mounting, steady or flashing, with buzzer 70…85 dB, IP54, 24 V AC DC
Normally In Stock
Code: 112670
Schneider XVC6B15SK 1 illuminated unit Buzzer 24 V 2.36 in (60 mm 70-85 dB continuous or intermittent tone1 m Complete pre-wired monolithic tower light LED steady or flashing red IP54 flat surface installation EN/IEC 60529 Harmony XVC1 100 mm Tower Lights Pre-wired monolithic tow
Condition: New
Normally Stocked$265.43
Sale Price
$221.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Monolithic tower light, red, 60mm, base mounting, steady or flashing, with buzzer 70…85 dB, IP54, 24 V AC DC
Specifications
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) IP Rating
IP54 Flat Surface Installation EN/IEC 60529
(Switching-Indication) Size
60 mm
Manufacturer
Schneider Electric
(Switching-Indication) DC Voltage
24 Volt
(Switching-Indication) AC Voltage
24 Volt
(Switching-Indication) AC Voltage
110-240 Volt
Component
Tower Light With Buzzer
Features

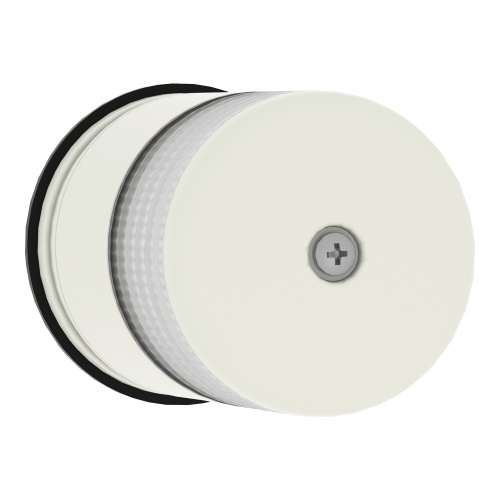

This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 60mm
It is supplied pre-assembled and pre-cabled with 1 red illuminated signaling unit and a base for mounting on horizontal surface
It also features a buzzer with continuous or intermittent tone and adjustable sound level from 70db to 85db at 1 m, + flashing light
It is designed for long distance indication of the operating states of a machine, visually by means of illuminated signaling units visible through 360°
It features LED for steady or flashing light source, and it can be supplied with 24 V AC/DC
Its protection index is IP54
It provides PC (polycarbonate) illuminated unit, ABS base unit and PBT + ABS (UL94HB) top cover
It weighs 200g and it is 121mm high
It is used mainly in the semi-conductor factories, on conveyor belts and on small food or drink dispensing machines in the commercial sector
It is CE and UL certified

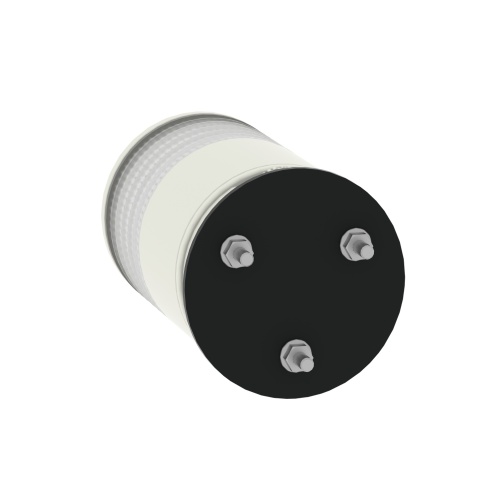

It is designed to be mounted on horizontal surface thanks to its base fitted with 3 screws.
