Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

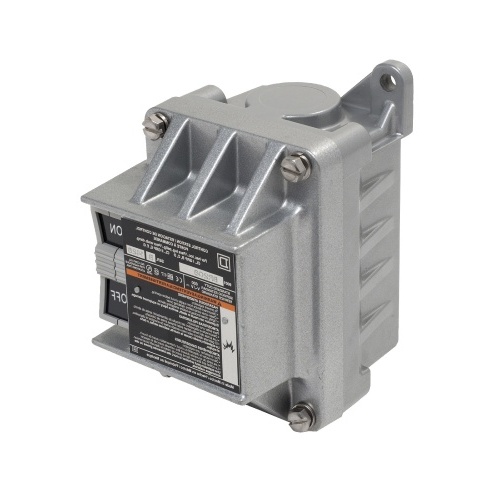

Schneider Electric 9001BR216 Complete Control Station type B - 2 operators - On-Off (Maintained) - NEMA 7/9, 1 push-button, black, white ON, 1 push-button, red, white OFF
Normally In Stock
Code: 112534
Schneider 9001BR216 Two functions 1 push-button, black, white ON, 1 push-button, red, white OFF Complete control station CE maintained 1 NO + 1 NC Cast zinc Harmony 9001B 9001BR 5 A 600 V, AC NEMA 7/9 Pendant stations Square D 9001 BW Pendant Stations Control Station
Condition: New
CALL FOR LEAD TIME$745.37
Sale Price
$621.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
control station type B - 2 operators - On-Off (Maintained) - NEMA 7/9
Specifications
(Switching-Indication) Operation
Maintained
(Switching-Indication) Contact Configuration
1 NO + 1 NC
(Switching-Indication) Composition
Cast Zinc
(Switching-Indication) NEMA Rating
NEMA 7
(Switching-Indication) NEMA Rating
NEMA 9
Component
Control Station
Manufacturer
Schneider Electric
(Switching-Indication) AC Voltage
600 Volt
Features
These standard duty control stations come complete with an enclosure, operators and contacts
This control station has a external toggle to operate the two maintained push buttons inside
It has a ON push button with a normally open contact
It has a OFF push button with a normally open contact
This NEMA 7/9 hazardous location control station is surface mounted
The push button contacts are standard duty rated
The contacts have a B600 rating
That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive
The contacts also have a P600 rating for DC loads
Classic screw clamp connections are used to connected to control circuits
Control station is UL Listed and CSA certified.
