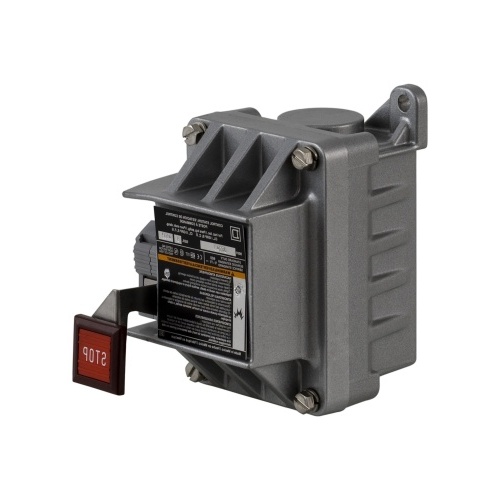

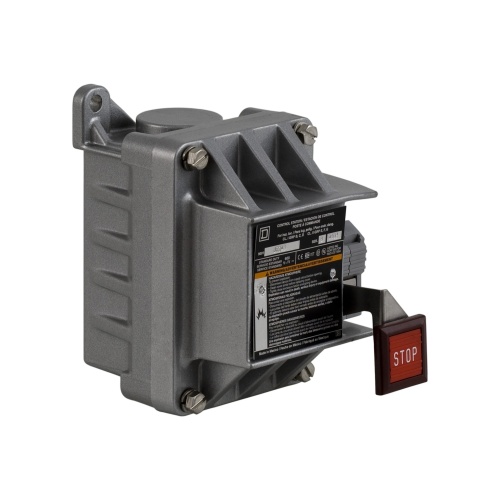

Schneider Electric 9001BR104 Complete Control Station type B - 1 operator - Stop (Lockout) - NEMA 7/9, 1 push-button, red, white STOP
Normally In Stock
Code: 112524
Schneider 9001BR104 Stop function 1 push-button, red, white STOP Complete control station CE momentary 1 NC Cast zinc Harmony 9001B 9001BR 5 A 600 V, AC NEMA 7/9 Pendant stations Square D 9001 BW Pendant Stations Control Station
Condition: New
CALL FOR LEAD TIME$445.37
Sale Price
$371.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
control station type B - 1 operator - Stop (Lockout) - NEMA 7/9
Specifications
(Switching-Indication) Contact Configuration
1 NC
(Switching-Indication) Operation
Momentary
(Switching-Indication) Composition
Cast Zinc
(Switching-Indication) NEMA Rating
NEMA 7
(Switching-Indication) NEMA Rating
NEMA 9
Component
Control Station
Manufacturer
Schneider Electric
(Switching-Indication) AC Voltage
600 Volt
Features
These standard duty control stations come complete with an enclosure, operators and contacts
This control station has a external toggle to operate the momentary push button inside
It has a STOP push button with a normally closed contact
The STOP push button has a lockout on it
This NEMA 7/9 hazardous location control station is surface mounted
The push button contacts are standard duty rated
The contacts have a B600 rating
That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive
The contacts also have a P600 rating for DC loads
Classic screw clamp connections are used to connected to control circuits
Control station is UL Listed and CSA certified.
