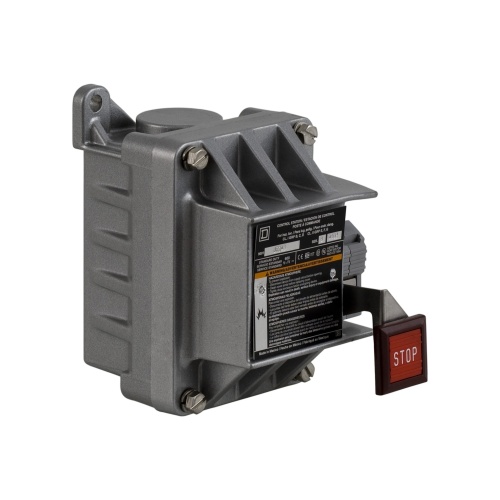

Schneider Electric 9001BR103 Complete Control Station 600VAC 5A T-B, 1 push-button STOP
Normally In Stock
Code: 112523
Schneider 9001BR103 1 push-button STOP Complete control station 1 NC Harmony 9001B 9001BR 5 A 600 V NEMA 7/9 Pendant stations Square D 9001 BW Pendant Stations Control Station
Condition: New
Normally Stocked$463.78
Sale Price
$386.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
CONTROL STATION 600VAC 5A T-B
Specifications
(Switching-Indication) Contact Configuration
1 NC
(Switching-Indication) NEMA Rating
NEMA 7
(Switching-Indication) NEMA Rating
NEMA 9
Component
Control Station
Manufacturer
Schneider Electric
(Switching-Indication) AC Voltage
600 Volt
Features
These standard duty control stations come complete with an enclosure, operators and contacts
This control station has one momentary push button with a mushroom button operator
It has a STOP push button with a normally closed contact
The push button contacts are standard duty rated
The contacts have a B600 rating
That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive
The contacts also have a P600 rating for DC loads
Classic screw clamp connections are used to connected to control circuits
This NEMA 7/9 enclosure for hazardous locations is surface mounted
Control station is also rated for Class l, Division l and ll, Groups B, C, or D
Class ll, Division l and ll, Groups E, F, or G
Control station is UL Listed and CSA certified
\It can be surface mounted, suitable for indoor installation.\,\The 9001BW control stations are fully assembled with two product specific operators with single speed or two speed options.\
