Schneider Electric 9001BG308 Complete Control Station 600VAC 5A T-B START-STOP, 3 push-buttons START-STOP
Normally In Stock
Code: 112506
Schneider 9001BG308 3 push-buttons START-STOP Complete control station 1 NO + 1 NC Harmony 9001B 9001BG 5 A 600 V NEMA 1 Pendant stations Square D 9001 BW Pendant Stations Control Station
Condition: New
CALL FOR LEAD TIME$385.25
Sale Price
$321.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
CONTROL STATION 600VAC 5A T-B START-STOP
Specifications
(Switching-Indication) NEMA Rating
NEMA 1
(Switching-Indication) Contact Configuration
1 NO + 1 NC
Component
Control Station
Manufacturer
Schneider Electric
(Switching-Indication) AC Voltage
600 Volt
Features

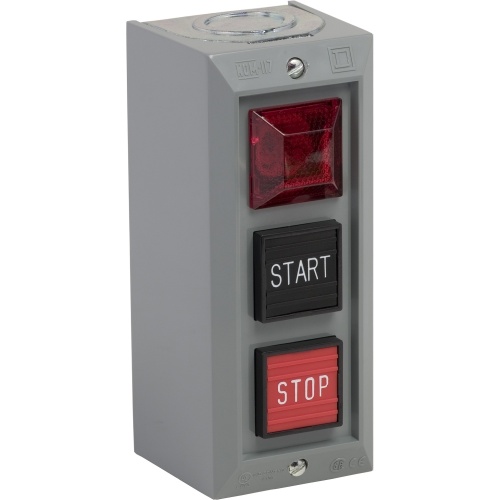

These standard duty control stations come complete with an enclosure, operators and contacts
This control station has two square momentary push buttons and a pilot light
It has a START push button with a normally open contact
It has a STOP push button with a normally closed contact
It also has a 120 VAC/VDC red pilot light
This NEMA 1 general purpose control station is surface mounted
The push button contacts are standard duty rated
The contacts have a B600 rating
That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive
The contacts also have a P600 rating for DC loads
Classic screw clamp connections are used to connected to control circuits
Control station is UL Listed and CSA certified.
