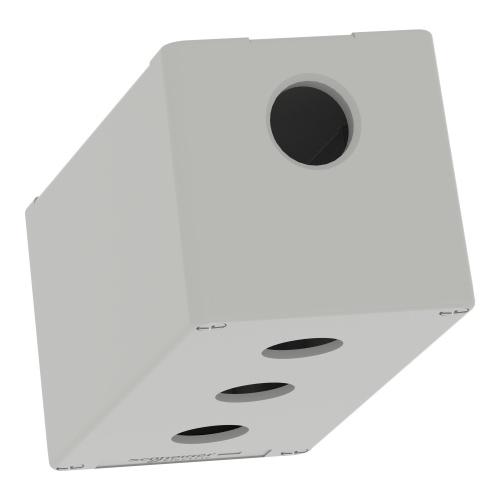

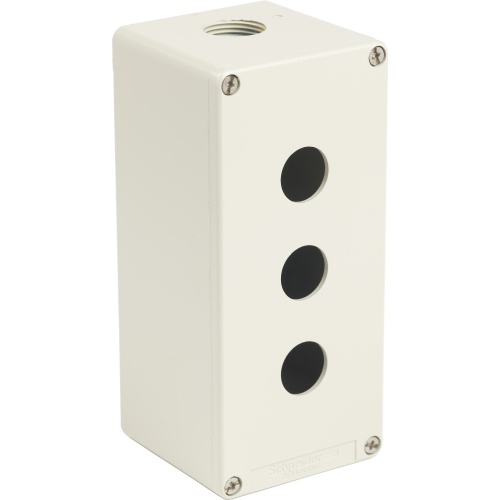

Schneider Electric XAPG39503 die-cast empty control station - XAP-G - Ø22 - 3 cut-outs
Normally In Stock
Code: 111118
Schneider XAPG39503 Die-cast empty control station For Ø 22 mm control and signalling units 3 cut-outs Zinc alloy Flush mounting Harmony XAP XB2 SL 22 mm Push Button Control Stations Products
Condition: New
Normally Stocked$164.39
Sale Price
$136.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
die-cast empty control station - XAP-G - Ø22 - 3 cut-outs
Specifications
(Switching-Indication) Size
22 mm
(Switching-Indication) Composition
Zinc Alloy
(Switching-Indication) Profile
3 Cut-Outs
Component
Control Station
Manufacturer
Schneider Electric
Features
XAPG 22mm enclosures are for industrial applications
These empty enclosures can be used with push buttons and pilot lights from the XB4 metal or XB5 plastic push button ranges
This gray die cast zinc alloy enclosure has openings for three operators
The spacing of the operator holes allows the enclosure vertically and have enough electrical clearance to mount the operators properly
The enclosure is NEMA 4 and 13 rated

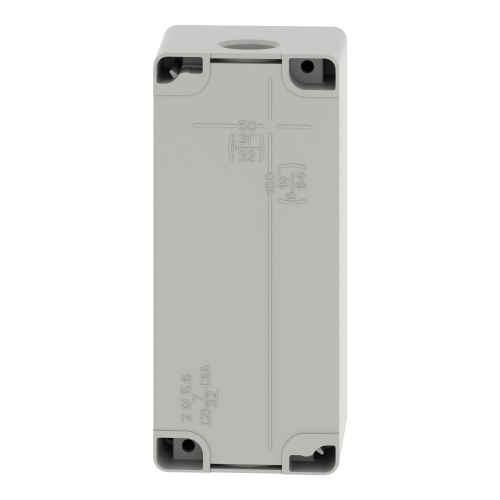

Enclosure is 6.89 inches tall, 3.15 inches wide and 3.03 inches deep
The relay weighs 2.52 lbs
Enclosure is UL Listed and CSA certified
\It is suitable for automotive, textiles, timber, energy distribution, public works, building and airport applications.\,\This product is certified by CSA.\,\It is compatible with the XB4 range Ø 22mm control and signaling units.\,\Harmony XAM, XAP industrial IP67 enclosures combines simple installation, configuration flexibility and robust construction.\,\The Harmony XAM, XAP range of insulated or metal enclosures designed for use in severe environments.\
