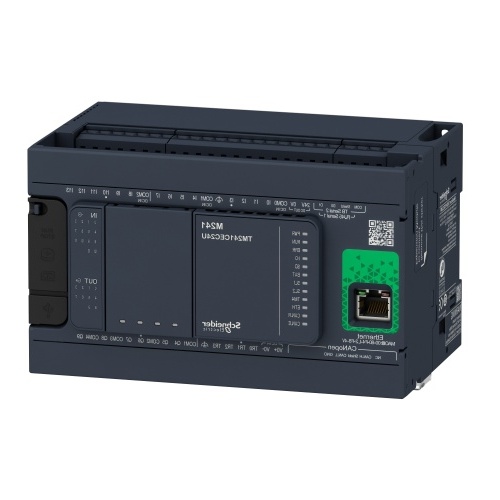

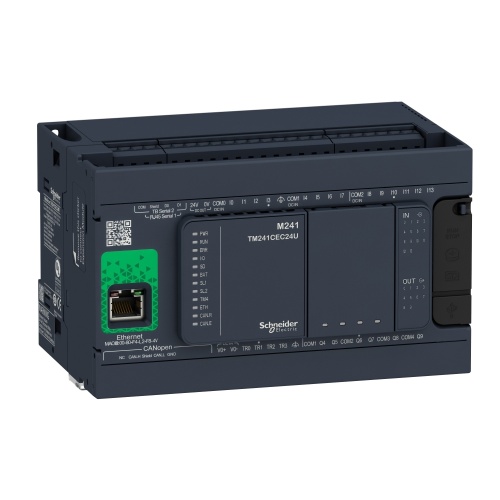

Schneider Electric TM241CEC24R controller M241 24 IO relay Ethernet CAN master
Normally In Stock
Code: 110862
Schneider TM241CEC24R 24 6 relay, 4 transistor 4 fast output Logic controller 14, discrete input 8 fast input IEC 61131-2 Type 1 24 V Transistor, Relay 8 MB program, 64 MB system memory RAM 100-240 V AC 10BASE-T/100BASE-TX - 1 copper cable removable screw terminal block for inputs and outputs pitch 5.08 mm, removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm Non isolated serial link serial 1 RJ45 RS232/RS485, Non isolated serial link serial 2 removable screw terminal block RS485, USB port mini B USB 2.0, Ethernet RJ45, CANopen J1939 male SUB-D 9 Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit Non isolated serial link Modbus master/slave IP20 with protective cover in place PLC Programmable Logic Controllers Modicon M241 Micro PLC Logic Controllers
Condition: New
Normally Stocked$906.12
Sale Price
$755.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
controller M241 24 IO relay Ethernet CAN master
Specifications
(Modicon PLC) Digital Output Type
Transistor
(Modicon PLC) Digital Output Type
Relay
(Modicon PLC) Total Digital Signals
24
(Modicon PLC) Digital Inputs
14
(Modicon PLC) Protocol
Non Isolated Serial Link Modbus Master/Slave
(Modicon PLC) Digital Outputs
6 Relay
(Modicon PLC) Total Comm Ports
6
(Modicon PLC) Comm Ports
1 Canopen
(Modicon PLC) Comm Ports
1 USB Port Mini B USB
(Modicon PLC) Comm Ports
1 RJ45
(Modicon PLC) Comm Ports
1 10BASE-T/100BASE-TX
(Modicon PLC) Comm Ports
2 RS485
(Modicon PLC) Digital Outputs
4 Transistor
Manufacturer
Schneider Electric
Component
M241 Micro PLC Logic Controller
Features
Intuitive machine programming with EcoStruxure Machine Expert.
Ready-to-use applications and function blocks.
Flexible and scalable machine control allowing an easy upgrade to higher performance platforms to improve efficiency.
Downloads
Code: 110862
Schneider Electric TM241CEC24R controller M241 24 IO relay Ethernet CAN master
$906.12
Sale Price
$755.10
