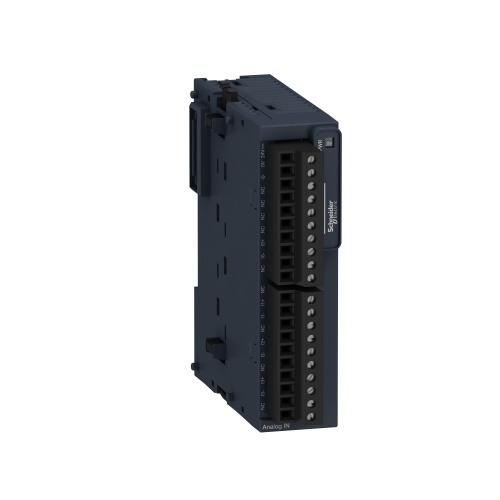

Schneider Electric TM3TI4 Modicon TM3 - 4 analog / temperature inputs (screw) 24Vdc
Normally In Stock
Code: 110800
Schneider HMIYRMAC21 Power supply module rack PC IP20 modular I/O-system Accessories Power Supply
Condition: New
CALL FOR LEAD TIME$465.79
Sale Price
$388.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Modicon TM3 - 4 analog / temperature inputs (screw) 24Vdc
Specifications
(Modicon PLC) Analog Inputs
4
(Modicon PLC) Analog Input Type
Current 0-20 Ma
(Modicon PLC) Analog Input Type
Current 4-20 Ma
(Modicon PLC) Analog Input Type
Voltage 0-10 V
(Modicon PLC) Analog Input Type
Voltage - 10-10 V
(Modicon PLC) Analog Input Type
Thermocouple J
(Modicon PLC) Analog Input Type
Thermocouple N
(Modicon PLC) Analog Input Type
Thermocouple K
(Modicon PLC) Analog Input Type
Thermocouple S
(Modicon PLC) Analog Input Type
Thermocouple R
(Modicon PLC) Analog Input Type
Thermocouple C
(Modicon PLC) Analog Input Type
Thermocouple T
(Modicon PLC) Analog Input Type
Thermocouple B
(Modicon PLC) Analog Input Type
Thermocouple E
(Modicon PLC) Analog Input Type
Ni 100/Ni 1000 Temperature Probe
(Modicon PLC) Analog Input Type
Pt 100 Temperature Probe
(Modicon PLC) Analog Input Type
Pt 1000 Temperature Probe
Manufacturer
Schneider Electric
Component
Accessories
Sub Component
Analog Input Module
Features
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262
The analogue input module provides 4 inputs with 16bit and 15bit + sign resolution
It is an input module with a rated supply voltage of 24V DC and a current consumption of 45mA/50mA at 5V DC via bus connector, 35mA/40mA at 24V DC via external supply
This product is capable of controlling variable speed drives or any device equipped with a current or voltage input
There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC
It is furnished with removable screw terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply
It is an IP20 rated product
Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height)
It weighs 0.11kg
This product is certified by CE
It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards
This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller
It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount
Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism
A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers
Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
