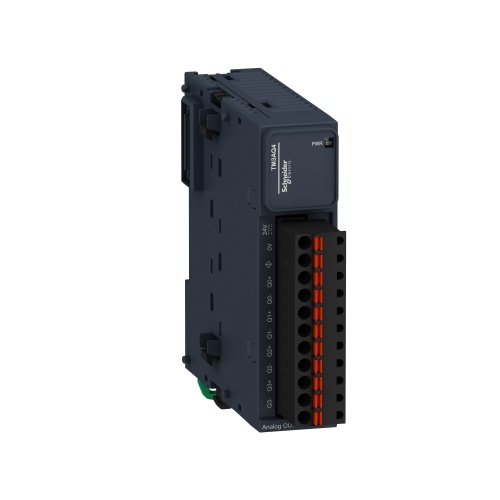

Schneider Electric TM3AQ4G Modicon TM3 - 4 analog outputs (spring) 24Vdc
Normally In Stock
Code: 110799
Schneider HMIYRMKT4P1 Maintenance kit Harmony rack PC IP20 modular I/O-system Accessories Maintenance Kit
Condition: New
CALL FOR LEAD TIME$465.79
Sale Price
$388.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Modicon TM3 - 4 analog outputs (spring) 24Vdc
Specifications
(Modicon PLC) Analog Output Type
Current 0-20 Ma
(Modicon PLC) Analog Outputs
4
(Modicon PLC) Analog Output Type
Current 4-20 Ma
(Modicon PLC) Analog Output Type
Voltage 0-10 V
(Modicon PLC) Analog Output Type
Voltage - 10-10 V
Manufacturer
Schneider Electric
Component
Accessories
Sub Component
Analog Output Module
Features
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262
The analogue output module provides 4 outputs with 11bit + sign and 12bit resolution
It is an output module with a rated supply voltage of 24V DC and a current consumption of 125mA at 24V DC via external supply full load
This product is capable of controlling variable speed drives or any device equipped with a current or voltage input
There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC
It is furnished with removable spring terminal for electrical connection with 5.08mm pitch adjustment for outputs and supply
It is an IP20 rated product
Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height)
It weighs 0.1kg
This product is certified by CE
It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards
This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller
It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount
Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism
A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers
Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
