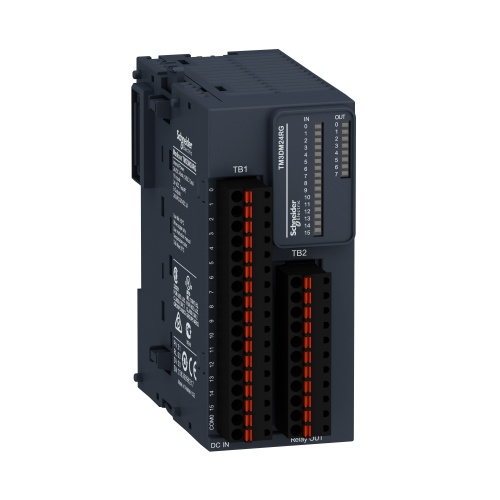

Schneider Electric TM3DM24RG Modicon TM3 - 24 IO (16 inputs, 8 relay outputs, spring) 24Vdc
Normally In Stock
Code: 110769
Schneider TM5SAO2H Analog output module 2 15 bits + sign, +/- 10 V, 15 bits, 0-20 mA Logic controller, Motion controller 24 V DC -15-20 % Current 0-20 mA, Voltage +/- 10 V White IP20IEC 61131-2 IP20 modular I/O-system Expansion modules "Slice" Analogue I/Os
Condition: New
CALL FOR LEAD TIME$393.16
Sale Price
$327.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Modicon TM3 - 24 IO (16 inputs, 8 relay outputs, spring) 24Vdc
Specifications
(Modicon PLC) Digital Outputs
8
(Modicon PLC) Digital Inputs
16
(Modicon PLC) Total Digital Signals
24
(Modicon PLC) Digital Output Type
Relay Normally Open
Manufacturer
Schneider Electric
Component
Accessories
Sub Component
I/O Module
Features
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262
The discrete I/O module provides 16 input channels, 8 relay output channels with sink or source (positive/negative) discrete logic
It is an I/O module with a relay output voltage of 24V DC, 240V AC, a current consumption of 65mA, 5mA at 5V DC via bus connector
This product is capable of controlling variable speed drives or any device equipped with a current or voltage input
There is an Insulation between input/output and internal logic at 500V AC, input and output groups at 1500V AC, open contact at 750V AC and non-insulated between inputs/outputs
It is furnished with removable spring terminal for electrical connection with 3.81mm pitch adjustment for inputs and outputs
It is an IP20 rated product
Its dimensions are 42.9mm (Width) x 84.6mm (Depth) x 90mm (Height)
It weighs 0.155kg
This product is certified by CE, CULus and C-Tick
It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards
This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller
It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount
Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism
A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers
Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
