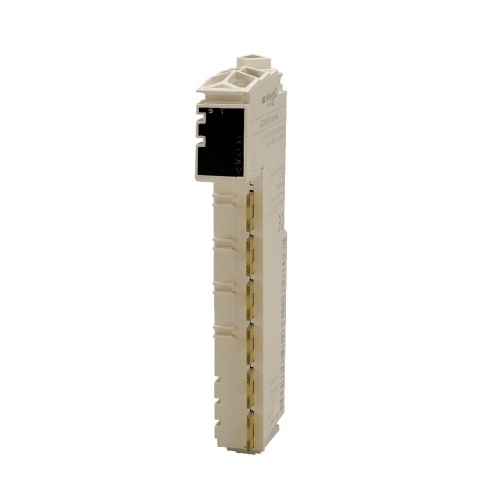

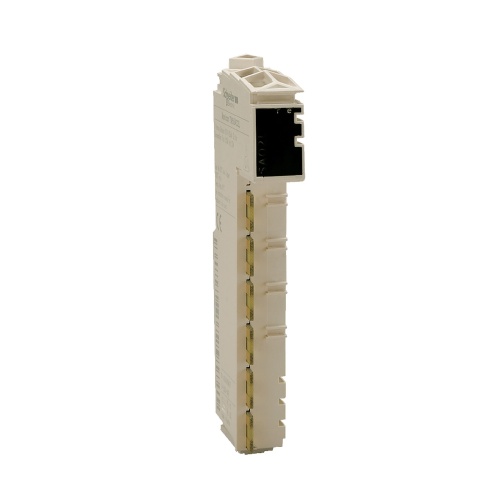

Schneider Electric TM5SAO4H analog output module - 4O - +/-10 V/0..20 mA - 16 bits
Normally In Stock
Code: 110600
Schneider TM5SAO4H Analog output module 4 15 bits + sign, +/- 10 V, 15 bits, 0-20 mA Logic controller, Motion controller 24 V DC -15-20 % Current 0-20 mA, Voltage +/- 10 V White IP20IEC 61131-2 IP20 modular I/O-system Expansion modules "Slice" Analogue I/Os
Condition: New
CALL FOR LEAD TIME$1353.96
Sale Price
$1128.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
analog output module - 4O - +/-10 V/0..20 mA - 16 bits
Specifications
(Modicon PLC) Analog Output Type
Current 0-20 Ma
(Modicon PLC) Analog Output Type
Voltage +/- 10 V
(Modicon PLC) Analog Outputs
4
Manufacturer
Schneider Electric
Component
Accessories
Sub Component
Analog Output Module
Features
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System
This analogue output module provides 4 analogue outputs with 15bits + sign, ±10V, 0mA to 20mA resolution
It offers analogue output ranges from 0mA to 20mA, ±10V
This product is part of a flexible and scalable I/O configuration for automation solutions
There is an isolation between channel and bus at 500V AC
The output voltage is ±10V and output current is 0mA to 20mA differential with internal supply
It is an IP20 rated product
It weighs 0.025kg
The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems
This product is certified by GOST-R, C-Tick, cULus and CSA
It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards
This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller
It is installed by mounting on a 35mm DIN rail
This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers
Flexible and scalable, designed for complex machines.
