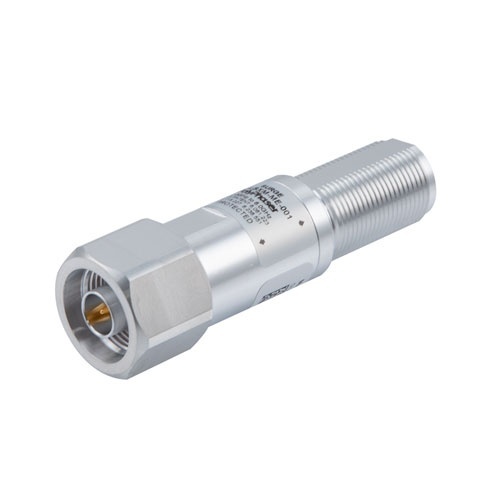

Polyphaser AL-LSXM-MA Coax Lightning Protector 2 GHz-6 GHz
Normally In Stock
Code: 11047
Polyphaser AL-LSXM-MA SX Radio Frequency Superior Coil Inductor Coax Protector 2 GHz-6 GHz DC Block Multi-Transmitters NM-NF(Surge side/Protected Side)
Condition: New
Usually ships Same Day or Next Day$89.24
Sale Price
$74.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Polyphaser AL-LSXM-MA SX Radio Frequency Superior Coil Inductor Coax Protector 2 GHz-6 GHz DC Block Multi-Transmitters NM-NF(Surge side/Protected Side)
Specifications
Connector Protected Side (RF Protection)
N Female
DC Handling (RF Protection)
DC Block
Direction Connection (RF Protection)
One Direction
Technology (RF Protection)
Coil Inductor
Weatherization (RF Protection)
Weatherized
Max Watts (RF Protection)
10 Watts
Connector Surge Side (RF Protection)
N Male
Max Surge Rate (RF Protection)
10Ka
VSWR (RF Protection)
≤1.2:1
Max Insertion Loss (RF Protection)
≤0.1 Db
Manufacturer
Polyphaser
Frequency (RF Protection)
2 Ghz-6 Ghz
Frequency (RF Protection)
2 Ghz
Frequency (RF Protection)
3 Ghz
Frequency Max (RF Protection)
6 Ghz
Component
Lightning Protector
Features
PolyPhaser coaxial RF surge protector (also known as lightning surge protector, lightning surge arrestor or suppressor) AL-LSXM-MA is in-stock and will ship same-day as purchased.
This radio frequency surge protector / lightning surge arrestor helps protect your equipment from electromagnetic pulse (EMP) or power surges that are commonly caused by lightning or other strong electrical changes.
Our radio frequency coaxial surge protector product is commonly used for radio and antenna installations where part or all system equipment is outdoors to protect sensitive equipment and is designed to pass 2 GHz to 6 GHz while suppressing DC surge.While this radio frequency lightning surge suppressor operates in a range of frequencies from 2GHz to 6GHz, it is supporting a power handling maximum of 10 Watts.
RF surge protector AL-LSXM-MA from PolyPhaser incorporates surge filter technology to provide protection for equipment at up to the max. power of 10W.
Our coax surge protection device for RF is manufactured with a N type bulkhead connection in and a type N bulkhead out.AL-LSXM-MA is constructed with a male gender for the input and female for the output.
This M/F type N to N type surge protecting component for RF has a let-through energy of .5uJ.
The coaxial lightning surge arrestor is IP rated, it has an IP67 rating.PolyPhaser provides one of the largest varieties of RF / microwave surge protector devices available for same-day shipping.
Our facilities ship type N M/F bulkhead coaxial RF surge protector, 2GHz - 6GHz, DC block, 10W, IP67, .5uJ, 10kA, filter as well as the rest of our surge protection product line from in-stock inventory the same day as purchased.
