Code: 109922

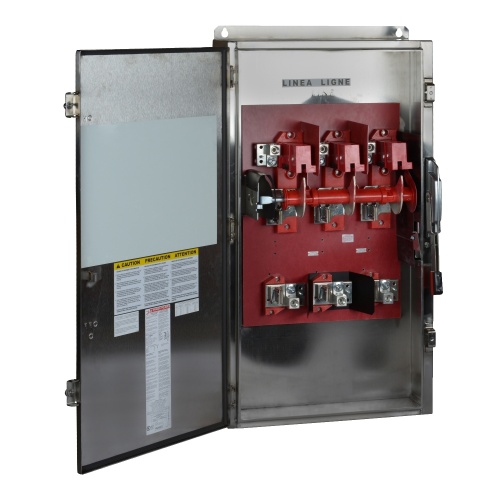

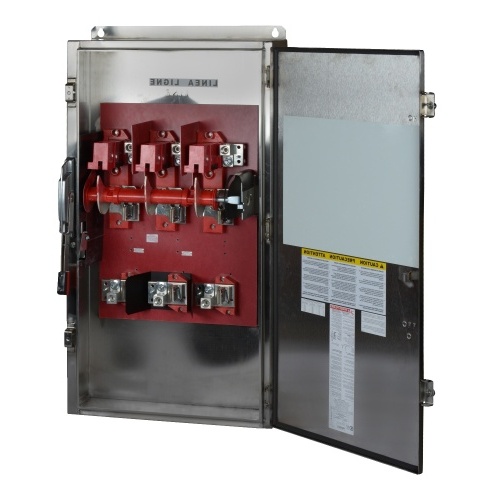

Schneider Electric H226NDS Safety switch, heavy duty, fusible, 600A, 2 poles, 200 hp, 240 VAC/250 VDC, NEMA 4, 4X, 5, 304 steel, neutral
Normally In Stock
Schneider Electric H226NDS Safety switch, heavy duty, fusible, 600A, 2 poles, 200 hp, 240 VAC/250 VDC, NEMA 4, 4X, 5, 304 steel, neutral
Condition: New
CALL FOR LEAD TIME$29513.40
Sale Price
$24594.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Safety switch, heavy duty, fusible, 600A, 2 poles, 200 hp, 240 VAC/250 VDC, NEMA 4, 4X, 5, 304 steel, neutral
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Composition
Stainless Steel
Enclosure Disconnect Type
Fusible Disconnect Switch
Enclosure Mount Type-Pushbutton Holes
Surface
Enclosure Disconnect Type
Single Throw Safety Switch
Enclosure NEMA Rating
NEMA 4
Enclosure NEMA Rating
NEMA 4X
Enclosure NEMA Rating
NEMA 5
Manufacturer
Schneider Electric
Component
Fusible Disconnect Switch
Sub Component
Single Throw Safety Switch
Disconnect Enclosure Depth
10.13 In
Disconnect Enclosure Height
46.25 In
Disconnect Enclosure Width
26.25 In
Features
Fusible and Non-Fusible options
Poles: 2 or 3 fusible switched poles (with our without ground able solid neutral)
4 or 6 fusible switched poles (grounded, solid neutral)
Rated Voltage: 240Vac/250Vdc or 600Vac/600Vdc
Rated Amperage: 30 - 1200A
Enclosures: Type 1, Type 3R, Type 12, Type 4X Stainless Steel
Rated Horsepower: 500hp maximum
Short Circuit Current Rating: Up to 200 kA utilizing appropriate Class R and Class R Fuse kits, or Class L, or Class J fuses
Seismically Qualified to: 2010 ASCE 7, 2012 International Building Code (IBC), 2013 California Building Code (CBC)
