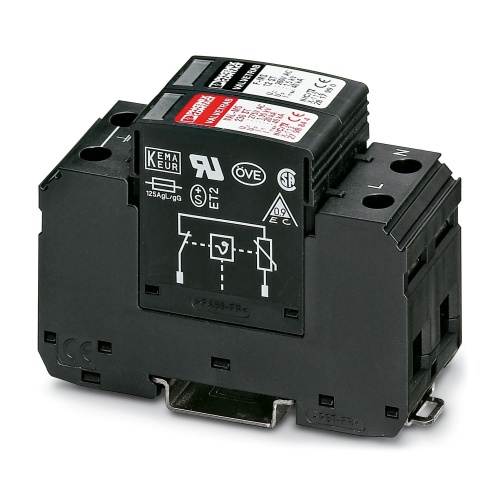

Phoenix Contact 2804429 Type 2 surge arrester VAL-MS 230/1+1
Normally In Stock
Code: 1095
VAL-MS 230/1+1 Phoenix Contact VAL-MS 230/1+1 Surge arrester for 3-conductor power supply systems (L1, N, PE), consisting of a base element and protective connectors, for mounting on NS 35. Design 275 V AC
Condition: New
Usually ships Same Day or Next Day$306.79
Sale Price
$255.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2804429 A surge arrester designed for three-conductor power supply systems, which includes live (L1), neutral (N) and earth (PE) conductors, is comprised of a base unit and protective connectors, intended to be mounted on the NS 35 rail.
Specifications
Surge Protector Mount
Din Rail Mount
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Maximum Continous Voltage
350 Volt
Nominal Discharge Current
10 Ka
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
Downloads
Phoenix 2804429 CAD data International.dxfPhoenix 2804429 CAD data International.pdfPhoenix 2804429 CAD data International.stpPhoenix 2804429 CAD Drawing.zipPhoenix 2804429 Flyer English.pdfPhoenix 2804429 Manufacturers declaration English.pdfPhoenix 2804429 Manufacturers declaration International.pdfPhoenix 2804429 Package Slip International.pdfPhoenix 2804429 Software International.zipPhoenix 2804429 Spec Sheet.pdfPhoenix 2804429 Surge Protection English.pdfPhoenix 2804429 Tender Text English.zipPhoenix 2804429 User Manual.pdf
