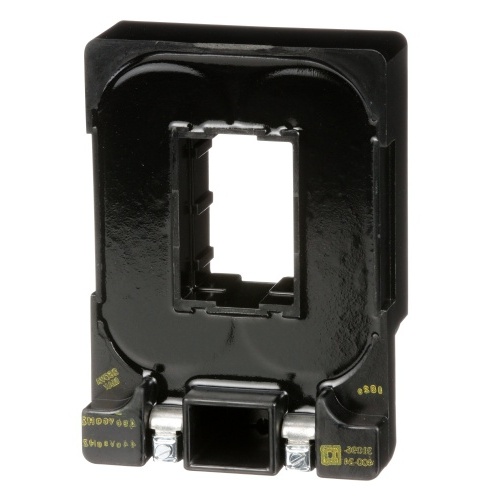

Schneider Electric 3109640024 NEMA Motor Starter, Type S, replacement coil, Series A, 440/480 VAC 50/60 Hz, NEMA size 5 starter and 8903SX lighting
Normally In Stock
Code: 109397
Buy Schneider 3109640024 5 Coil 18079 - SPARE PARTS DISCOUNT CP10 CP10 00785901326939 2.63 lb(US (1.19 kg Class 8502 type SG contactor, Class 8903 type SY/SX lighting contactor, Class 8910 type SYD368 (series A contactor 480 V AC 60 Hz, 440 V AC 50 Hz 1.78 in (45.3 mm Lighting Co
Condition: New
Normally Stocked$627.90
Sale Price
$523.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NEMA Motor Starter, Type S, replacement coil, Series A, 440/480 VAC 50/60 Hz, NEMA size 5 starter and 8903SX lighting
Specifications
Component
Replacement Coil
Sub Component
Type S Starter Coil
Manufacturer
Schneider Electric
Starter Frequency
50/60 Hz
Starter Length
1.78"
Features
The coil can be easily replaced in a Type S contactor or starter
By changing out the coil, the contactor or starter can be used in different control circuit voltage applications
This will also save the cost of a whole new contactor or starter if the coil were to fail
This coil is used in an 8502SG Series A contactor, an 8536SG Series A starter or an 8903SX Series A lighting contactor
The coil is rated for 440/480 VAC 50/60 Hz
The inrush power of this coil is 2970 VA
It has an average sealed consumption of 212 VA
This coil has a height of 140.5 mm, a width of 101.2 mm
Coil is fully encapsulated to protect it
Coil has screw clamp connections.
