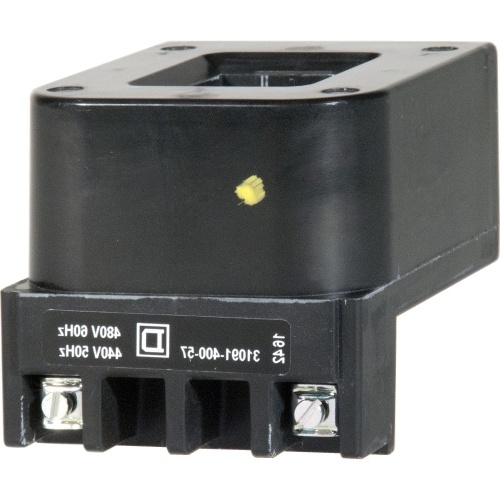

Schneider Electric 3109140057 NEMA Motor Starter, Type S, replacement coil, 440/480 VAC 50/60 Hz, NEMA Size 4 starters and 8903SV lighting contactors
Normally In Stock
Code: 109385
Buy Schneider 3109140057 4 Coil 18079 - SPARE PARTS DISCOUNT CP10 CP10 00785901323600 1.22 lb(US (0.55 kg Class 8502 type SF contactor, Class 8903 type SV lighting contactor, Class 8910 type SYD230 contactor 480 V AC 60 Hz, 440 V AC 50 Hz 2.47 in (62.7 mm Lighting Contactors Type
Condition: New
Normally Stocked$498.16
Sale Price
$415.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NEMA Motor Starter, Type S, replacement coil, 440/480 VAC 50/60 Hz, NEMA Size 4 starters and 8903SV lighting contactors
Specifications
Component
Replacement Coil
Sub Component
Type S Starter Coil
Manufacturer
Schneider Electric
Starter Frequency
50/60 Hz
Starter Length
2.47"
Features
The coil can be easily replaced in a Type S contactor or starter
By changing out the coil, the contactor or starter can be used in different control circuit voltage applications
This will also save the cost of a whole new contactor or starter if the coil were to fail
This coil is used in an 8502SF contactor, an 8536SF starter or an 8903SV lighting contactor
This coil is rated for 440/480 VAC 50/60 Hz
The inrush power of this coil is 1185 VA
It has an average sealed consumption of 85 VA
This coil has a height of 74.7 mm, a width of 65 mm and a depth of 62.7 mm
Coil is fully encapsulated to protect it
Coil has screw clamp connections.
