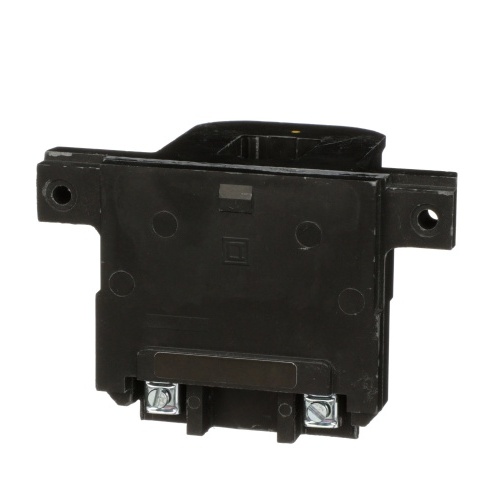

Schneider Electric 3106340947 NEMA Motor Starter, Type S, replacement coil, 220/240 VAC 50/60 Hz, 2 or 3 pole, NEMA Size 2 starters, 8903SP lighting
Normally In Stock
Code: 109360
Buy Schneider 3106340947 2 Coil 18061 - SPARE PARTS DISCOUNT CP1 CP1 00785901504979 0.81 lb(US (0.37 kg Class 8502 type SD contactor, Class 8903 type SP lighting contactor 240 V AC 60 Hz, 220 V AC 50 Hz 2.43 in (61.7 mm Lighting Contactors Type S Multipole Lighting Contactors (89
Condition: New
Normally Stocked$176.62
Sale Price
$147.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NEMA Motor Starter, Type S, replacement coil, 220/240 VAC 50/60 Hz, 2 or 3 pole, NEMA Size 2 starters, 8903SP lighting
Specifications
Component
Replacement Coil
Sub Component
Type S Starter Coil
Manufacturer
Schneider Electric
Starter Frequency
50/60 Hz
Starter Length
2.43"
Features
The coil can be easily replaced in a Type S contactor or starter
By changing out the coil, the contactor or starter can be used in different control circuit voltage applications
This will also save the cost of a whole new contactor or starter if the coil were to fail
This coil is used in an 8502SD contactor, an 8536SD starter or an 8903SP lighting contactor
This coil is rated for 220/240 VAC 50/60 Hz
The inrush power of this coil is 311 VA
It has an average sealed consumption of 37 VA
This coil has a height of 66.2 mm, a width of 101.1 mm and a depth of 61.7 mm
Coil is fully encapsulated to protect it
Coil has screw clamp connections.
