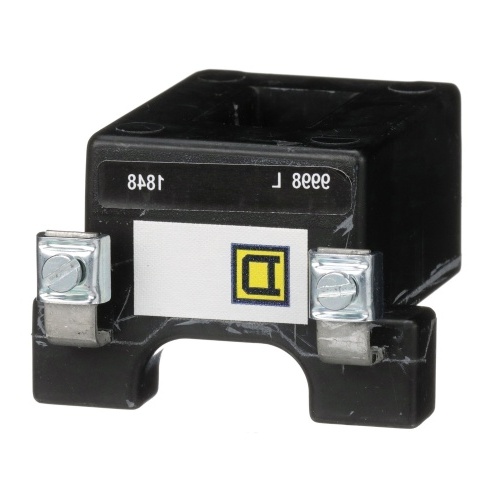

Schneider Electric 9998L44 Contactor, Type L, multipole lighting, replacement coil, 110/120 VAC 50/60 Hz, 8903L 2 to 6 poles, 8903LX 2 to 4 poles
Normally In Stock
Code: 108474
Buy Schneider 9998L44 Coil Lighting Contactors Type L/LX Lighting Contactors Repair Parts
Condition: New
Normally Stocked$150.76
Sale Price
$125.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Contactor, Type L, multipole lighting, replacement coil, 110/120 VAC 50/60 Hz, 8903L 2 to 6 poles, 8903LX 2 to 4 poles
Specifications
Component
Replacement Coil
Sub Component
Type L Multipole Lighting Coil
Manufacturer
Schneider Electric
Starter Frequency
50/60 Hz
Features
8903L multipole lighting contactors are for lighting control applications
Contactors can switch up to 30 A fluorescent and 20 A tungsten lighting loads
The coil can be easily replaced in a 8903 L lighting contactor
By changing out the coil, the lighting contactor can be used in different control circuit voltage applications
This will also save the cost of a whole new contactor if the coil were to fail
This coil is used in an 8903L, 2 to 6 poles, and 8930LX, 2 to 4 poles, lighting contactors
The coil is rated for 110/120 VAC 50/60 Hz
The inrush power of this coil is 150 VA
It has an average sealed consumption of 30 VA
This coil has a height of 2.38 inches, a width of 2.11 inches and a depth of 1.46 inches
Coil is fully encapsulated to protect it
Coil has screw clamp connections.
