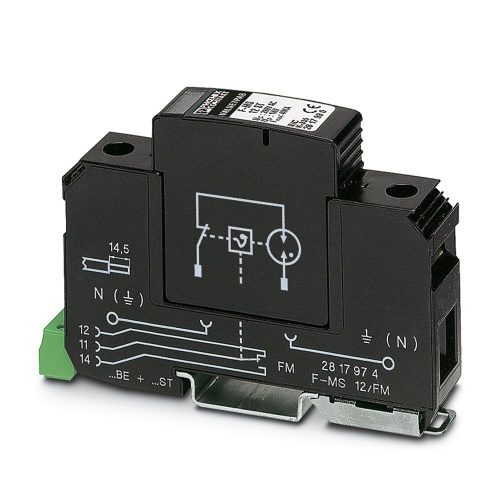

Phoenix Contact 2817974 Type 2 surge arrester F-MS 12/FM
Normally In Stock
Code: 1082

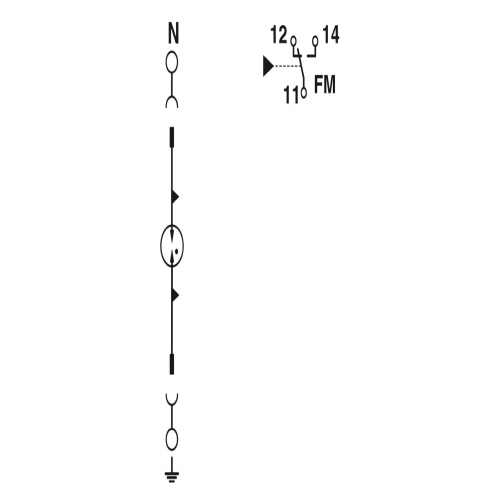

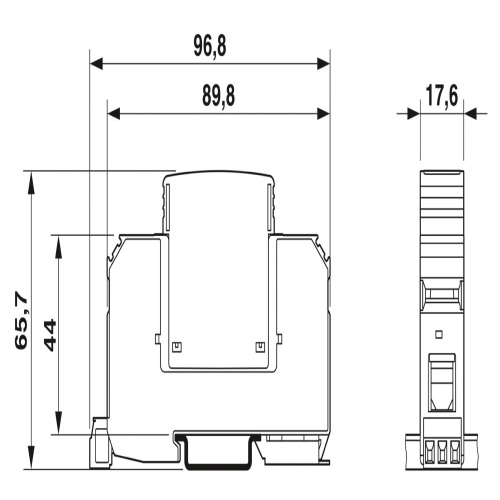

F-MS 12/FM Phoenix Contact F-MS 12/FM Surge arrester type 2, consisting of base element with remote indicator contact and protective plug with N-PE total current spark gap for mounting on NS 35/7.5, housing width: 17.5 mm (1 Div.)
Condition: New
Usually ships Same Day or Next Day$184.08
Sale Price
$153.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2817974 The Surge Arrester Type 2 features a base element with a remote indicator contact and a protective plug equipped with an N-PE total current spark gap that can be mounted onto the NS 35/7.5 standard, with a housing width of 17.5 mm (1 Div).
Specifications
Surge Protector Mount
Din Rail Mount
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
B2
Direction of Action
Line-Line
Direction of Action
Shield-Earth Ground
Direction of Action
Line-Shield
Manufacturer
Phoenix Contact
Nominal Discharge Current
350 Amp
Connection Method
Screw Connection
Surge Protector Type
Surge Protection For Information Technology
Maximum Continous Voltage
± 11 Volt
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
