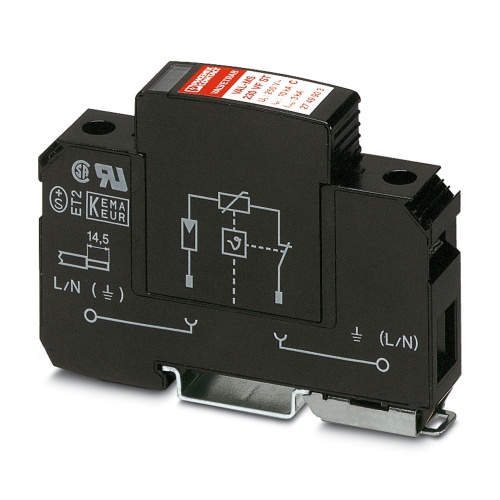

Phoenix Contact 2856582 Type 2 surge arrester VAL-MS 350VF
Normally In Stock
Code: 1078

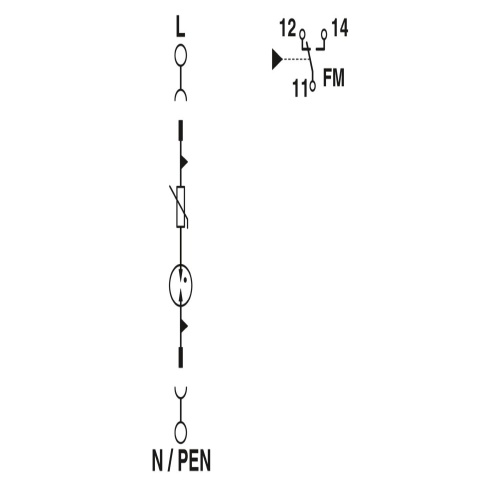

VAL-MS 350VF Phoenix Contact VAL-MS 350VF Surge voltage arrester consisting of base element with protective plug with a connection in series with a varistor and a gas-filled spark gap, for mounting on NS 35/7.5, nominal voltage: 230 V AC
Condition: New
Usually ships within 7-14 days. Call for ship time.$174.40
Sale Price
$145.33
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2856582 A specific type of surge voltage arrester is the one that consists of a base element connected in series to a protective plug and a gas-filled spark gap, mounted on an NS 35/7.5 frame with a nominal voltage rating of 230V AC and designed for single-channel applications.
Specifications
Surge Protector Mount
Din Rail Mount
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Protection For Information Technology
Maximum Continous Voltage
5.2 Volt
Nominal Discharge Current
10 Ka
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
Suitable for use in insulation-monitored systems due to combination of varistor and gas discharge tube free of leakage current
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
Can be used in applications with increased insulation strength, e.g., railway technology
Downloads
Phoenix 2856582 CAD data International.dxfPhoenix 2856582 CAD data International.pdfPhoenix 2856582 CAD data International.stpPhoenix 2856582 CAD Drawing.zipPhoenix 2856582 EPLAN Macro International.z13Phoenix 2856582 EPLAN Macro International.zipPhoenix 2856582 Flyer English.pdfPhoenix 2856582 Manufacturers declaration International.pdfPhoenix 2856582 Package Slip International.pdfPhoenix 2856582 Software International.zipPhoenix 2856582 Spec Sheet.pdfPhoenix 2856582 Surge Protection English.pdfPhoenix 2856582 Tender Text English.zipPhoenix 2856582 User Manual.pdf
