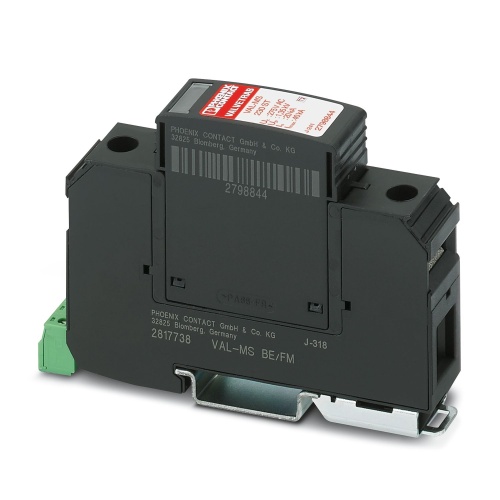

Phoenix Contact 2839130 Type 2 surge arrester VAL-MS 230/FM
Normally In Stock
Code: 1075
VAL-MS 230/FM Phoenix Contact VAL-MS 230/FM Surge voltage arrester consisting of base element with remote indicator contact and ground connector with high-capacity varistor, for mounting on NS 35/7.5, nominal voltage: 230 V AC, 1-channel
Condition: New
Usually ships Same Day or Next Day$171.17
Sale Price
$142.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2839130 A surge voltage arrester designed for mounting on the NS 35/7.5 platform features a base element with a remote indicator contact and ground connector connected to a high-capacity varistor, catering to a nominal AC voltage of 230 volts for single-channel applications.
Specifications
Surge Protector Mount
Din Rail Mount
Fault Warning
Optical
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Arrester Class according to IEC
B2
Fault Warning
Multi-Stage
Direction of Action
Line-Line
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Protection For Information Technology
Maximum Continous Voltage
180 Volt
Nominal Discharge Current
10 Ka
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
Downloads
Phoenix 2839130 CAD data International.dxfPhoenix 2839130 CAD data International.pdfPhoenix 2839130 CAD data International.stpPhoenix 2839130 CAD Drawing.zipPhoenix 2839130 EPLAN Macro International.zipPhoenix 2839130 Flyer English.pdfPhoenix 2839130 Manufacturers declaration English.pdfPhoenix 2839130 Manufacturers declaration International.pdfPhoenix 2839130 Package Slip International.pdfPhoenix 2839130 Software International.zipPhoenix 2839130 Spec Sheet.pdfPhoenix 2839130 Surge Protection English.pdfPhoenix 2839130 Tender Text English.zipPhoenix 2839130 User Manual.pdf
