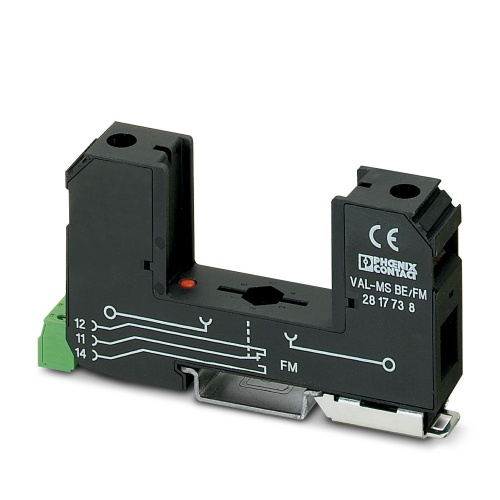

Phoenix Contact 2817738 Type 2 surge protection base element VAL-MS BE/FM
Normally In Stock
Code: 1093
VAL-MS BE/FM Phoenix Contact VAL-MS BE/FM Base element for type 2 arresters of the VALVETRAB MS series of products, with remote indication contact. Design: 1-channel
Condition: New
Usually ships Same Day or Next Day$62.20
Sale Price
$51.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2817738 The base element for Type 2 arresters in the VALVETRAB MS product series features a remote indication contact and has a single-channel design.
Specifications
Surge Protector Mount
Din Rail Mount
Arrester Class according to IEC
I
Fault Warning
Optical
Arrester Class according to IEC
I - II
Arrester Class according to IEC
T1 - T2
Impulse Discharge Current
12.5 Ka
Manufacturer
Phoenix Contact
Component
Accessories
Connection Method
Screw Connection
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
175 Volt
Nominal Discharge Current
12.5 Ka
Sub Component
Base Element
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
Downloads
Phoenix 2817738 CAD data International.dxfPhoenix 2817738 CAD data International.pdfPhoenix 2817738 CAD data International.stpPhoenix 2817738 CAD data International.wrlPhoenix 2817738 CAD Drawing.zipPhoenix 2817738 Flyer English.pdfPhoenix 2817738 Manufacturers declaration English.pdfPhoenix 2817738 Manufacturers declaration International.pdfPhoenix 2817738 Package Slip International.pdfPhoenix 2817738 Software International.zipPhoenix 2817738 Spec Sheet.pdfPhoenix 2817738 Surge Protection English.pdfPhoenix 2817738 Tender Text English.zipPhoenix 2817738 User Manual.pdfPhoenix 2817738 Various International.pdf
