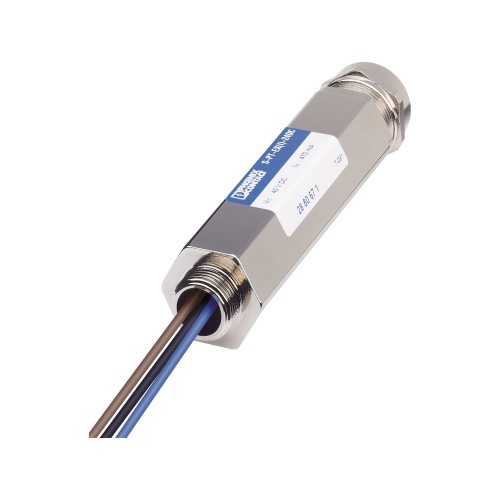

Phoenix Contact 2882585 Surge protection device S-PT-EX(I)-24DC-3/4"
Normally In Stock
Code: 10623
S-PT-EX(I)-24DC-3/4" Phoenix Contact Transient Surge Suppressor S-PT-EX(I)-24DC-3/4" Surge protection in the IP67 screw-on module for measuring sensors in intrinsically safe circuits, direct mounting with 3/4" NPT outer thread.
Condition: New
Usually ships Same Day or Next Day$400.56
Sale Price
$333.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

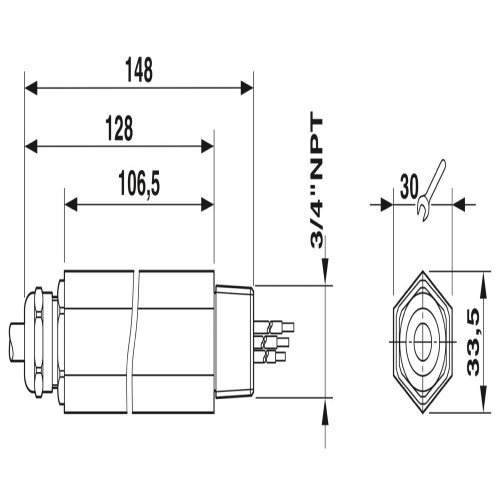

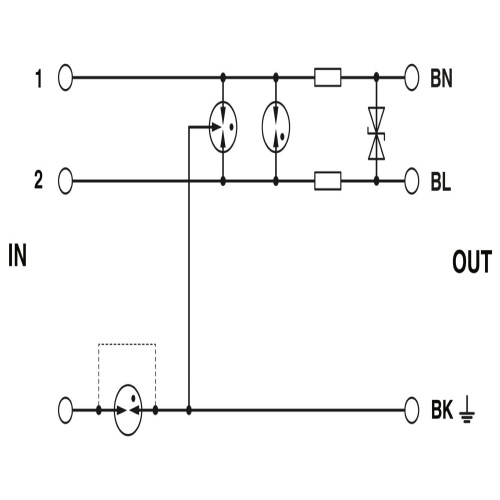

Phoenix Contact 2882585 This IP67 screw-on module is designed specifically for measuring sensors in intrinsically safe circuits and features direct mounting with a 3/4'' NPT external thread, allowing for easy connection of cable glands for signal lines. The module also includes a two-stage protective circuit and is compatible with HART communication protocols, making it suitable for use in safety-related circuits up to SIL 3.
Specifications
Manufacturer
Phoenix Contact
Surge Protector Line Voltage
24 Volt
Component
Surge Protection Device
Features
Easiest field mounting with standardized thread
Versatile in use with universal protective circuit
Use under extreme ambient conditions with robust design
Downloads
Phoenix 2882585 CAD data International.dxfPhoenix 2882585 CAD data International.stpPhoenix 2882585 CAD Drawing.zipPhoenix 2882585 Certification English.pdfPhoenix 2882585 Certification International.pdfPhoenix 2882585 Flyer English.pdfPhoenix 2882585 Manufacturers declaration English.pdfPhoenix 2882585 Manufacturers declaration International.pdfPhoenix 2882585 Package Slip International.pdfPhoenix 2882585 Software International.zipPhoenix 2882585 Spec Sheet.pdfPhoenix 2882585 Surge Protection English.pdfPhoenix 2882585 Tender Text English.zipPhoenix 2882585 User Manual.pdf
