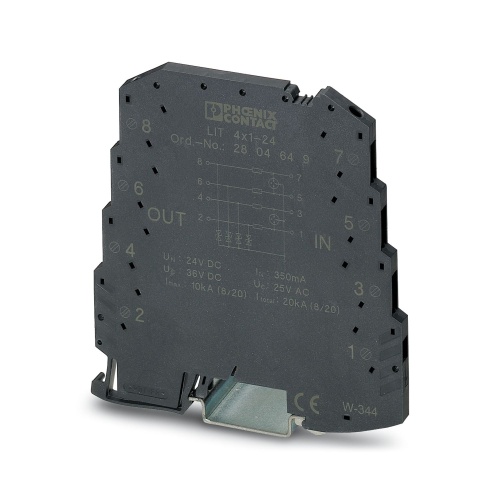

Phoenix Contact 2804649 Surge protection device LIT 4X1-24
Normally In Stock
Code: 10568

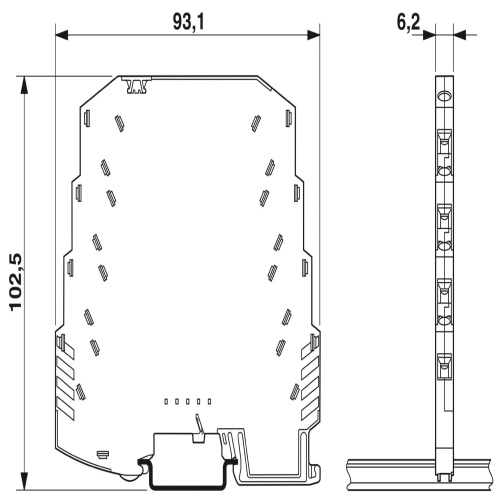

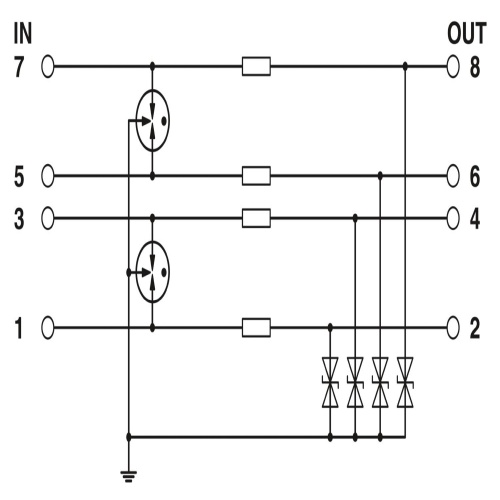

LIT 4X1-24 Phoenix Contact Transient Surge Suppressor LIT 4X1-24 Surge protection in one-piece 6.2 mm wide DIN rail module for four conductors with common reference potential.
Condition: New
Usually ships Same Day or Next Day$235.13
Sale Price
$195.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

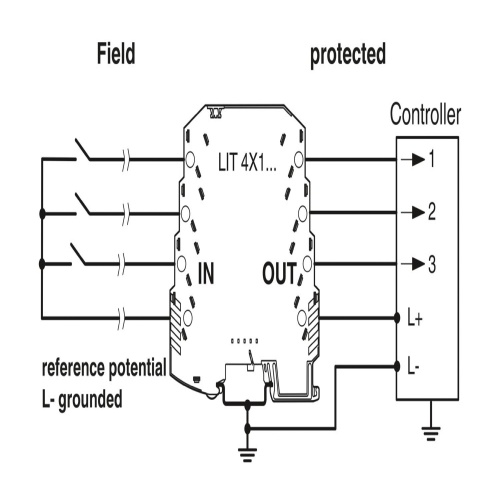

Phoenix Contact 2804649 A surge protection unit is housed in a single, compact module that fits onto a standard DIN rail, measuring 6.2mm in width and designed to accommodate four separate wires, as well as providing a shared ground or common reference potential for all the conductors.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
385 Volt
Nominal Discharge Current
40 Ka
Component
Surge Protection Device
Features
Space saving with a narrow overall width of just 6 mm
Cost-optimized with tailored product features
Universal use with extended nominal voltage range
Downloads
Phoenix 2804649 CAD data International.dxfPhoenix 2804649 CAD data International.pdfPhoenix 2804649 CAD data International.stpPhoenix 2804649 CAD data International.wrlPhoenix 2804649 CAD Drawing.zipPhoenix 2804649 Flyer English.pdfPhoenix 2804649 Manufacturers declaration English.pdfPhoenix 2804649 Manufacturers declaration International.pdfPhoenix 2804649 Package Slip International.pdfPhoenix 2804649 Product Information English.pdfPhoenix 2804649 Software International.zipPhoenix 2804649 Spec Sheet.pdfPhoenix 2804649 Surge Protection English.pdfPhoenix 2804649 Tender Text English.zipPhoenix 2804649 User Manual.pdf
