Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

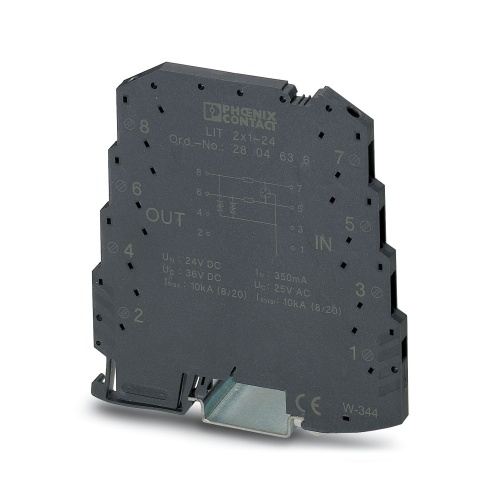

Phoenix Contact 2804636 Surge protection device LIT 2X1-24
Normally In Stock
Code: 10567
LIT 2X1-24 Phoenix Contact Transient Surge Suppressor LIT 2X1-24 Surge protection in one-piece 6.2 mm wide DIN rail module for two conductors with common reference potential.
Condition: New
Usually ships Same Day or Next Day$131.53
Sale Price
$109.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

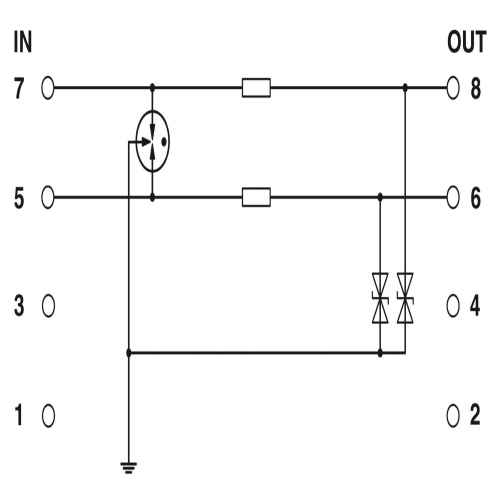

Phoenix Contact 2804636 A surge protection module designed to fit within a standard DIN rail and accommodating both a positive conductor and a negative conductor connected together, forming a common reference potential.
Specifications
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Arrester
Nominal Discharge Current
40 Ka
Component
Surge Protection Device
Features

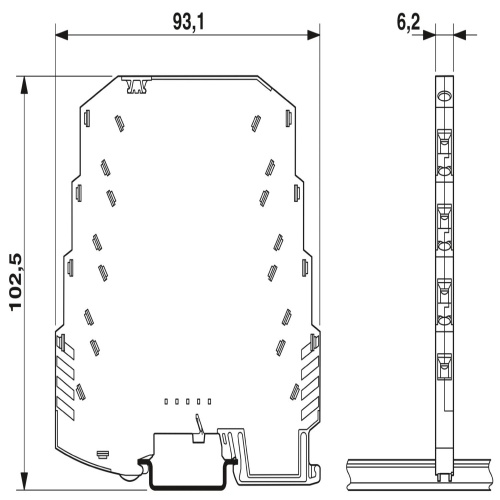

Space saving with a narrow overall width of just 6 mm
Cost-optimized with tailored product features
Universal use with extended nominal voltage range
Downloads
Phoenix 2804636 CAD data International.dxfPhoenix 2804636 CAD data International.pdfPhoenix 2804636 CAD data International.stpPhoenix 2804636 CAD data International.wrlPhoenix 2804636 CAD Drawing.zipPhoenix 2804636 Flyer English.pdfPhoenix 2804636 Manufacturers declaration English.pdfPhoenix 2804636 Manufacturers declaration International.pdfPhoenix 2804636 Package Slip International.pdfPhoenix 2804636 Product Information English.pdfPhoenix 2804636 Software International.zipPhoenix 2804636 Spec Sheet.pdfPhoenix 2804636 Surge Protection English.pdfPhoenix 2804636 Tender Text English.zipPhoenix 2804636 User Manual.pdf
