Phoenix Contact 2859327 Surge protection device PT 2X1-VF-120AC
Normally In Stock
Code: 10556
PT 2X1-VF-120AC Phoenix Contact Transient Surge Suppressor PT 2X1-VF-120AC Rail-mountable surge arrester for higher signal voltages. Protective circuit free of leakage current for two floating signals.Nominal voltage: 120 V AC.
Condition: New
Usually ships Same Day or Next Day$180.53
Sale Price
$150.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

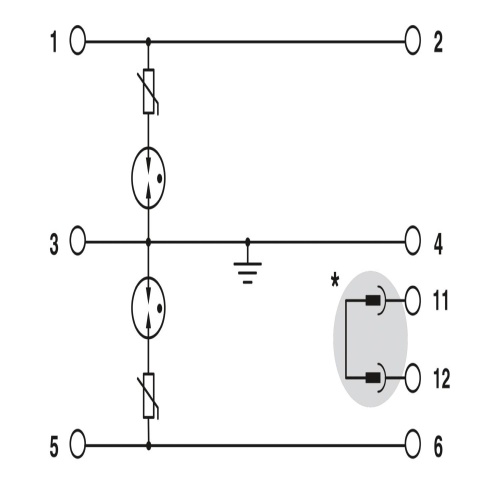

Phoenix Contact 2859327 A rail-mountable surge arrester designed to handle higher signal voltages is available, featuring a protective circuit that eliminates leakage current for two floating signals at nominal voltage 120 V AC.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
120 Volt
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
175 Volt
Nominal Discharge Current
20 Ka
Component
Surge Protection Device
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
Downloads
Phoenix 2859327 CAD data International.dxfPhoenix 2859327 CAD data International.pdfPhoenix 2859327 CAD data International.stpPhoenix 2859327 CAD Drawing.zipPhoenix 2859327 Flyer English.pdfPhoenix 2859327 Manufacturers declaration English.pdfPhoenix 2859327 Manufacturers declaration International.pdfPhoenix 2859327 Software International.zipPhoenix 2859327 Spec Sheet.pdfPhoenix 2859327 Surge Protection English.pdfPhoenix 2859327 Tender Text English.zipPhoenix 2859327 User Manual.pdf
