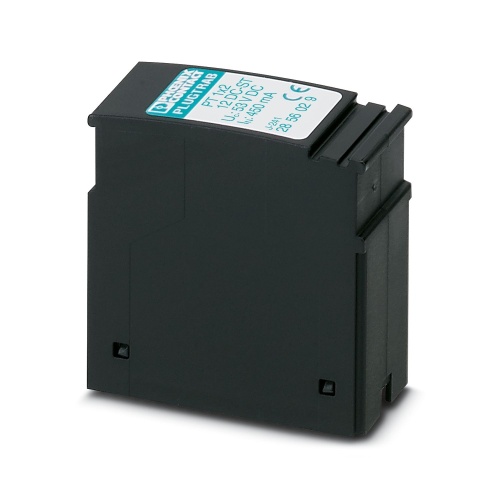

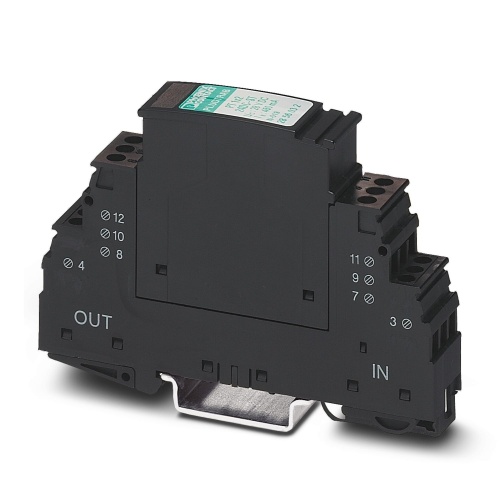

Phoenix Contact 2856029 Surge protection plug PT 1X2-12DC-ST
Normally In Stock
Code: 10469
PT 1X2-12DC-ST Phoenix Contact Transient Surge Suppressor PT 1X2-12DC-ST Protective plug PT with protective circuit for a 2-core floating signal circuit. Nominal voltage: 12 V DC
Condition: New
Usually ships Same Day or Next Day$230.87
Sale Price
$192.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2856029 A protective connector designed to safeguard a 2-wire floating signal circuit is created and equipped with a protective circuit, ensuring its safety, while also being compatible with HART (Highway Addressable Remote Transducer) technology standards.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Direction of Action
Line-Line
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
12 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
175 Volt
Nominal Discharge Current
3 Ka
Component
Surge Protection Plug
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2856029 CAD data International.dxfPhoenix 2856029 CAD data International.pdfPhoenix 2856029 CAD data International.stpPhoenix 2856029 CAD Drawing.zipPhoenix 2856029 Certification International.pdfPhoenix 2856029 EPLAN Macro International.z13Phoenix 2856029 EPLAN Macro International.zipPhoenix 2856029 Flyer English.pdfPhoenix 2856029 Manufacturer's declaration International-2.pdfPhoenix 2856029 Manufacturer's declaration International.pdfPhoenix 2856029 Manufacturers declaration English.pdfPhoenix 2856029 Manufacturers declaration International-2.pdfPhoenix 2856029 Manufacturers declaration International.pdfPhoenix 2856029 Package Slip International.pdfPhoenix 2856029 Product Information English.pdfPhoenix 2856029 Software International.zipPhoenix 2856029 Spec Sheet.pdfPhoenix 2856029 Surge Protection English.pdfPhoenix 2856029 Tender Text English.zipPhoenix 2856029 User Manual.pdf
