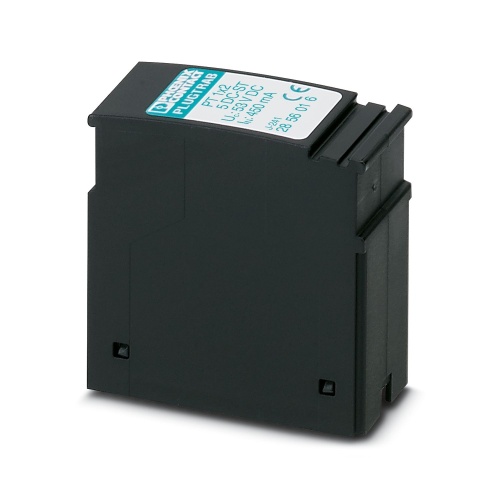

Phoenix Contact 2856016 Surge protection plug PT 1X2- 5DC-ST
Normally In Stock
Code: 10468

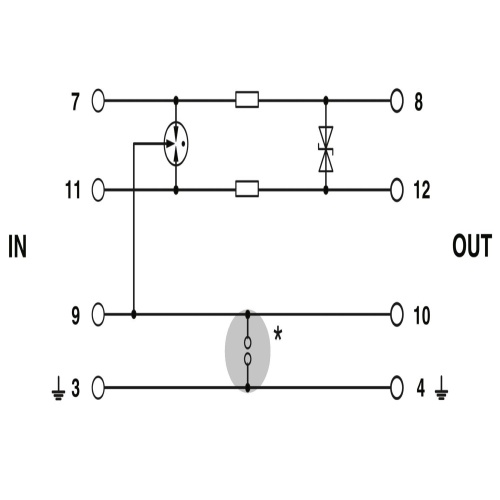

PT 1X2- 5DC-ST Phoenix Contact Transient Surge Suppressor PT 1X2- 5DC-ST Protective plug PT with protective circuit for a 2-core floating signal circuit. Nominal voltage: 5 V DC
Condition: New
Usually ships Same Day or Next Day$228.67
Sale Price
$190.56
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2856016 A protective connector designed to provide protection and meet the requirements of a 2-wire floating signal circuit is available in HART-compatible format, offering an added layer of safety and compatibility with existing HART systems.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Fault Warning
Multi-Stage
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
5 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
6 Volt
Nominal Discharge Current
10 Ka
Component
Surge Protection Plug
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
